vtkKWListBoxWithScrollbars Class Reference

a vtkKWListBox associated to two vtkKWScrollbar's More...

#include <vtkKWListBoxWithScrollbars.h>

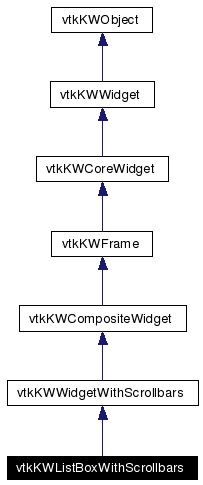

Inheritance diagram for vtkKWListBoxWithScrollbars:

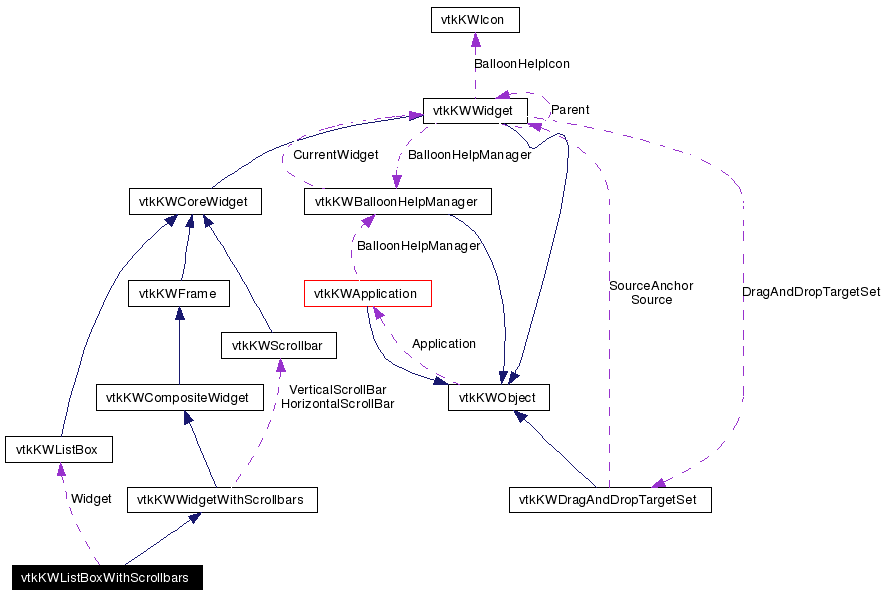

[legend]Collaboration diagram for vtkKWListBoxWithScrollbars:

[legend]List of all members.

Public Member Functions
	vtkTypeRevisionMacro (vtkKWListBoxWithScrollbars, vtkKWWidgetWithScrollbars)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Create (vtkKWApplication *app)
virtual vtkKWListBox *	GetWidget ()
virtual void	UpdateEnableState ()
Static Public Member Functions
vtkKWListBoxWithScrollbars *	New ()
Protected Member Functions
	vtkKWListBoxWithScrollbars ()
	~vtkKWListBoxWithScrollbars ()
virtual void	Pack ()
virtual void	CreateHorizontalScrollbar (vtkKWApplication *app)
virtual void	CreateVerticalScrollbar (vtkKWApplication *app)
Protected Attributes
vtkKWListBox *	Widget

---

Detailed Description

a vtkKWListBox associated to two vtkKWScrollbar's

This composite widget provides horizontal and vertical scrolling capabilities to a core widget. They can be enabled or disabled separately. As a subclass of vtkKWWidgetWithScrollbars, it inherits methods to retrieve the scrollbars and set their visibility and layout.

See also:

vtkKWWidgetWithScrollbars vtkKWListBox

Definition at line 33 of file vtkKWListBoxWithScrollbars.h.

---

Constructor & Destructor Documentation

vtkKWListBoxWithScrollbars::vtkKWListBoxWithScrollbars (   )  [protected]

vtkKWListBoxWithScrollbars::~vtkKWListBoxWithScrollbars (   )  [protected]

---

Member Function Documentation

vtkKWListBoxWithScrollbars* vtkKWListBoxWithScrollbars::New (   )  [static]

Reimplemented from vtkKWCompositeWidget.

vtkKWListBoxWithScrollbars::vtkTypeRevisionMacro (  vtkKWListBoxWithScrollbars  , vtkKWWidgetWithScrollbars  )

void vtkKWListBoxWithScrollbars::PrintSelf (  ostream &  os, vtkIndent  indent )

Reimplemented from vtkKWWidgetWithScrollbars.

virtual void vtkKWListBoxWithScrollbars::Create (  vtkKWApplication *  app  )  [virtual]

Create the widget. Reimplemented from vtkKWWidgetWithScrollbars.

virtual vtkKWListBox* vtkKWListBoxWithScrollbars::GetWidget (   )  [virtual]

Get the vtkKWListBox for which we addded the scrollbars

virtual void vtkKWListBoxWithScrollbars::UpdateEnableState (   )  [virtual]

Update the "enable" state of the object and its internal parts. Depending on different Ivars (this->Enabled, the application's Limited Edition Mode, etc.), the "enable" state of the object is updated and propagated to its internal parts/subwidgets. This will, for example, enable/disable parts of the widget UI, enable/disable the visibility of 3D widgets, etc. Reimplemented from vtkKWWidgetWithScrollbars.

virtual void vtkKWListBoxWithScrollbars::CreateHorizontalScrollbar (  vtkKWApplication *  app  )  [protected, virtual]

Create scrollbars and associate the scrollbars to a widget by setting up the callbacks between both instances. Re-implemented to set the associated now that we know the internal widget Reimplemented from vtkKWWidgetWithScrollbars.

virtual void vtkKWListBoxWithScrollbars::CreateVerticalScrollbar (  vtkKWApplication *  app  )  [protected, virtual]

Create scrollbars and associate the scrollbars to a widget by setting up the callbacks between both instances. Re-implemented to set the associated now that we know the internal widget Reimplemented from vtkKWWidgetWithScrollbars.

virtual void vtkKWListBoxWithScrollbars::Pack (   )  [protected, virtual]

Pack. Implements vtkKWWidgetWithScrollbars.

---

Member Data Documentation

vtkKWListBox* vtkKWListBoxWithScrollbars::Widget [protected]

Internal widget Definition at line 59 of file vtkKWListBoxWithScrollbars.h.

---

The documentation for this class was generated from the following file:

• GUI/Widgets/Templates/vtkKWListBoxWithScrollbars.h

---
