itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage > Class Template Reference
[Intensity Image Filters, Multithreaded Filters]

Applies a linear transformation to the magnitude of pixel vectors in a vector Image. More...

#include <itkVectorRescaleIntensityImageFilter.h>

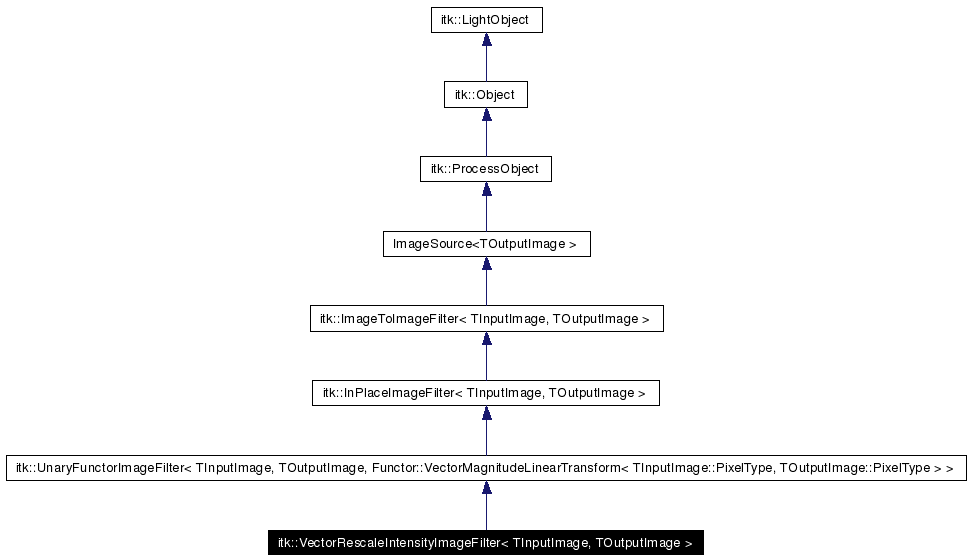

Inheritance diagram for itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >:

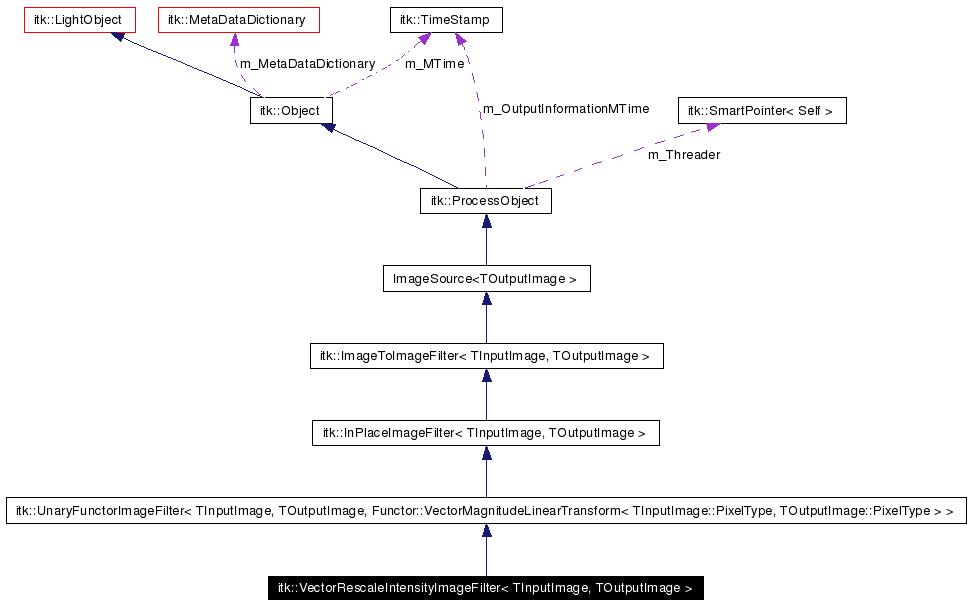

[legend]Collaboration diagram for itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >:

[legend]List of all members.

Public Types
typedef VectorRescaleIntensityImageFilter	Self
typedef UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::VectorMagnitudeLinearTransform< typename TInputImage::PixelType, typename TOutputImage::PixelType > >	Superclass
typedef SmartPointer< Self >	Pointer
typedef SmartPointer< const Self >	ConstPointer
typedef TOutputImage::PixelType	OutputPixelType
typedef TInputImage::PixelType	InputPixelType
typedef InputPixelType::ValueType	InputValueType
typedef OutputPixelType::ValueType	OutputValueType
typedef NumericTraits< InputValueType >::RealType	InputRealType
typedef NumericTraits< OutputValueType >::RealType	OutputRealType
Public Member Functions
virtual void	SetOutputMaximumMagnitude (OutputRealType _arg)
virtual const OutputRealType &	GetOutputMaximumMagnitude ()
virtual const InputRealType &	GetInputMaximumMagnitude ()
void	BeforeThreadedGenerateData (void)
void	PrintSelf (std::ostream &os, Indent indent) const
virtual const InputRealType &	GetScale ()
virtual const InputRealType &	GetShift ()
Static Public Member Functions
Pointer	New ()
Protected Member Functions
	VectorRescaleIntensityImageFilter ()
virtual	~VectorRescaleIntensityImageFilter ()

---

Detailed Description

template<typename TInputImage, typename TOutputImage = TInputImage>
class itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >

Applies a linear transformation to the magnitude of pixel vectors in a vector Image.

VectorRescaleIntensityImageFilter applies pixel-wise a linear transformation to the intensity values of input image pixels. The linear transformation is defined by the user in terms of the maximum magnitude value of the vectors in the pixels that the output image should have.

All computations are performed in the precison of the input pixel's RealType. Before assigning the computed value to the output pixel.

See also:

RescaleIntensityImageFilter

Definition at line 73 of file itkVectorRescaleIntensityImageFilter.h.

---

Member Typedef Documentation

template<typename TInputImage, typename TOutputImage = TInputImage> typedef SmartPointer<const Self> itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::ConstPointer

Reimplemented from itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, TFunction >. Definition at line 88 of file itkVectorRescaleIntensityImageFilter.h.

template<typename TInputImage, typename TOutputImage = TInputImage> typedef TInputImage::PixelType itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::InputPixelType

Definition at line 91 of file itkVectorRescaleIntensityImageFilter.h.

template<typename TInputImage, typename TOutputImage = TInputImage> typedef NumericTraits<InputValueType>::RealType itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::InputRealType

Definition at line 94 of file itkVectorRescaleIntensityImageFilter.h. Referenced by itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::~VectorRescaleIntensityImageFilter().

template<typename TInputImage, typename TOutputImage = TInputImage> typedef InputPixelType::ValueType itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::InputValueType

Definition at line 92 of file itkVectorRescaleIntensityImageFilter.h.

template<typename TInputImage, typename TOutputImage = TInputImage> typedef TOutputImage::PixelType itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::OutputPixelType

Definition at line 90 of file itkVectorRescaleIntensityImageFilter.h.

template<typename TInputImage, typename TOutputImage = TInputImage> typedef NumericTraits<OutputValueType>::RealType itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::OutputRealType

Definition at line 95 of file itkVectorRescaleIntensityImageFilter.h. Referenced by itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::~VectorRescaleIntensityImageFilter().

template<typename TInputImage, typename TOutputImage = TInputImage> typedef OutputPixelType::ValueType itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::OutputValueType

Definition at line 93 of file itkVectorRescaleIntensityImageFilter.h.

template<typename TInputImage, typename TOutputImage = TInputImage> typedef SmartPointer<Self> itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::Pointer

Reimplemented from itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, TFunction >. Definition at line 87 of file itkVectorRescaleIntensityImageFilter.h.

template<typename TInputImage, typename TOutputImage = TInputImage> typedef VectorRescaleIntensityImageFilter itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::Self

Standard class typedefs. Reimplemented from itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, TFunction >. Definition at line 82 of file itkVectorRescaleIntensityImageFilter.h. Referenced by itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::~VectorRescaleIntensityImageFilter().

template<typename TInputImage, typename TOutputImage = TInputImage> typedef UnaryFunctorImageFilter<TInputImage,TOutputImage, Functor::VectorMagnitudeLinearTransform< typename TInputImage::PixelType, typename TOutputImage::PixelType> > itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::Superclass

Reimplemented from itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, TFunction >. Definition at line 86 of file itkVectorRescaleIntensityImageFilter.h.

---

Constructor & Destructor Documentation

template<typename TInputImage, typename TOutputImage = TInputImage> itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::VectorRescaleIntensityImageFilter (   )  [protected]

template<typename TInputImage, typename TOutputImage = TInputImage> virtual itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::~VectorRescaleIntensityImageFilter (   )  [inline, protected, virtual]

Definition at line 122 of file itkVectorRescaleIntensityImageFilter.h. References itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::InputRealType, itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::OutputRealType, and itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::Self.

---

Member Function Documentation

template<typename TInputImage, typename TOutputImage = TInputImage> void itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData (  void   )  [virtual]

Process to execute before entering the multithreaded section Reimplemented from itk::ImageSource< TOutputImage >.

template<typename TInputImage, typename TOutputImage = TInputImage> virtual const InputRealType& itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::GetInputMaximumMagnitude (   )  [virtual]

Get the Maximum value of the input image magnitudes. Warning: These Values are only valid after the filter has been updated

template<typename TInputImage, typename TOutputImage = TInputImage> virtual const OutputRealType& itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::GetOutputMaximumMagnitude (   )  [virtual]

template<typename TInputImage, typename TOutputImage = TInputImage> virtual const InputRealType& itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::GetScale (   )  [virtual]

Get the Scale and Shift used for the linear transformation of magnitude values. Warning: These Values are only valid after the filter has been updated

template<typename TInputImage, typename TOutputImage = TInputImage> virtual const InputRealType& itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::GetShift (   )  [virtual]

Get the Scale and Shift used for the linear transformation of magnitude values. Warning: These Values are only valid after the filter has been updated

template<typename TInputImage, typename TOutputImage = TInputImage> Pointer itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::New (   )  [static]

Method for creation through the object factory. Reimplemented from itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, TFunction >.

template<typename TInputImage, typename TOutputImage = TInputImage> void itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::PrintSelf (  std::ostream &  os, Indent  indent )  const [virtual]

Print internal ivars Reimplemented from itk::InPlaceImageFilter< TInputImage, TOutputImage >.

template<typename TInputImage, typename TOutputImage = TInputImage> virtual void itk::VectorRescaleIntensityImageFilter< TInputImage, TOutputImage >::SetOutputMaximumMagnitude (  OutputRealType  _arg  )  [virtual]

---

The documentation for this class was generated from the following file:

• itkVectorRescaleIntensityImageFilter.h

---
