itk::TensorFractionalAnisotropyImageFilter< TInputImage, TOutputImage > Class Template Reference
[Intensity Image Filters, Multithreaded Filters, Objects Related to Tensor Images]

Computes the Fractional Anisotropy for every pixel of a input tensor image. More...

#include <itkTensorFractionalAnisotropyImageFilter.h>

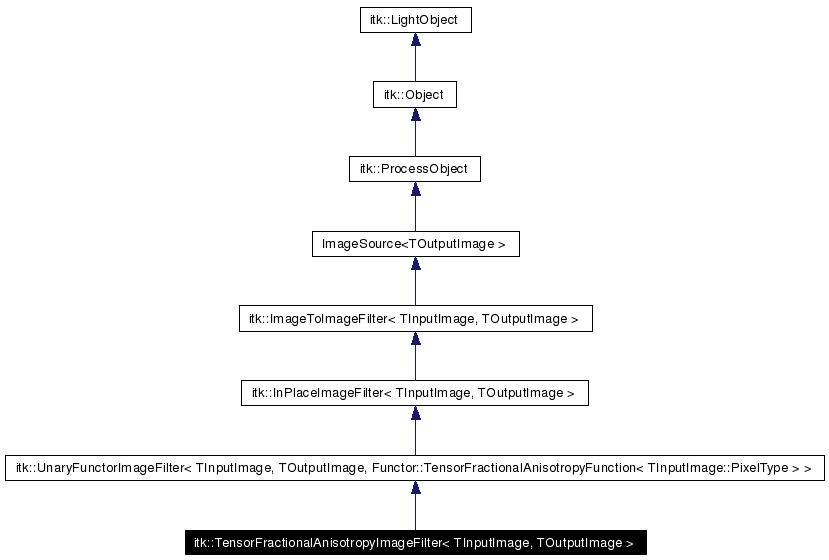

Inheritance diagram for itk::TensorFractionalAnisotropyImageFilter< TInputImage, TOutputImage >:

[legend]Collaboration diagram for itk::TensorFractionalAnisotropyImageFilter< TInputImage, TOutputImage >:

[legend]List of all members.

Public Types
typedef TensorFractionalAnisotropyImageFilter	Self
typedef UnaryFunctorImageFilter< TInputImage, TOutputImage, Functor::TensorFractionalAnisotropyFunction< typename TInputImage::PixelType > >	Superclass
typedef SmartPointer< Self >	Pointer
typedef SmartPointer< const Self >	ConstPointer
typedef Superclass::OutputImageType	OutputImageType
typedef TOutputImage::PixelType	OutputPixelType
typedef TInputImage::PixelType	InputPixelType
typedef InputPixelType::ValueType	InputValueType
Public Member Functions
void	PrintSelf (std::ostream &os, Indent indent) const
Static Public Member Functions
Pointer	New ()
Protected Member Functions
	TensorFractionalAnisotropyImageFilter ()
virtual	~TensorFractionalAnisotropyImageFilter ()

---

Detailed Description

template<typename TInputImage, typename TOutputImage = TInputImage>
class itk::TensorFractionalAnisotropyImageFilter< TInputImage, TOutputImage >

Computes the Fractional Anisotropy for every pixel of a input tensor image.

TensorFractionalAnisotropyImageFilter applies pixel-wise the invokation for computing the fractional anisotropy of every pixel. The pixel type of the input image is expected to implement a method GetFractionalAnisotropy(), and to specify its return type as RealValueType.

See also:

TensorRelativeAnisotropyImageFilter

DiffusionTensor3D

Definition at line 60 of file itkTensorFractionalAnisotropyImageFilter.h.

---

Member Typedef Documentation

template<typename TInputImage, typename TOutputImage = TInputImage> typedef SmartPointer<const Self> itk::TensorFractionalAnisotropyImageFilter< TInputImage, TOutputImage >::ConstPointer

Reimplemented from itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, TFunction >. Definition at line 74 of file itkTensorFractionalAnisotropyImageFilter.h.

template<typename TInputImage, typename TOutputImage = TInputImage> typedef TInputImage::PixelType itk::TensorFractionalAnisotropyImageFilter< TInputImage, TOutputImage >::InputPixelType

Definition at line 78 of file itkTensorFractionalAnisotropyImageFilter.h.

template<typename TInputImage, typename TOutputImage = TInputImage> typedef InputPixelType::ValueType itk::TensorFractionalAnisotropyImageFilter< TInputImage, TOutputImage >::InputValueType

Definition at line 79 of file itkTensorFractionalAnisotropyImageFilter.h.

template<typename TInputImage, typename TOutputImage = TInputImage> typedef Superclass::OutputImageType itk::TensorFractionalAnisotropyImageFilter< TInputImage, TOutputImage >::OutputImageType

Superclass typedefs. Reimplemented from itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, TFunction >. Definition at line 76 of file itkTensorFractionalAnisotropyImageFilter.h.

template<typename TInputImage, typename TOutputImage = TInputImage> typedef TOutputImage::PixelType itk::TensorFractionalAnisotropyImageFilter< TInputImage, TOutputImage >::OutputPixelType

Definition at line 77 of file itkTensorFractionalAnisotropyImageFilter.h.

template<typename TInputImage, typename TOutputImage = TInputImage> typedef SmartPointer<Self> itk::TensorFractionalAnisotropyImageFilter< TInputImage, TOutputImage >::Pointer

Reimplemented from itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, TFunction >. Definition at line 73 of file itkTensorFractionalAnisotropyImageFilter.h.

template<typename TInputImage, typename TOutputImage = TInputImage> typedef TensorFractionalAnisotropyImageFilter itk::TensorFractionalAnisotropyImageFilter< TInputImage, TOutputImage >::Self

Standard class typedefs. Reimplemented from itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, TFunction >. Definition at line 68 of file itkTensorFractionalAnisotropyImageFilter.h.

template<typename TInputImage, typename TOutputImage = TInputImage> typedef UnaryFunctorImageFilter<TInputImage,TOutputImage, Functor::TensorFractionalAnisotropyFunction< typename TInputImage::PixelType> > itk::TensorFractionalAnisotropyImageFilter< TInputImage, TOutputImage >::Superclass

Reimplemented from itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, TFunction >. Definition at line 71 of file itkTensorFractionalAnisotropyImageFilter.h.

---

Constructor & Destructor Documentation

template<typename TInputImage, typename TOutputImage = TInputImage> itk::TensorFractionalAnisotropyImageFilter< TInputImage, TOutputImage >::TensorFractionalAnisotropyImageFilter (   )  [inline, protected]

Definition at line 91 of file itkTensorFractionalAnisotropyImageFilter.h.

template<typename TInputImage, typename TOutputImage = TInputImage> virtual itk::TensorFractionalAnisotropyImageFilter< TInputImage, TOutputImage >::~TensorFractionalAnisotropyImageFilter (   )  [inline, protected, virtual]

Definition at line 92 of file itkTensorFractionalAnisotropyImageFilter.h.

---

Member Function Documentation

template<typename TInputImage, typename TOutputImage = TInputImage> Pointer itk::TensorFractionalAnisotropyImageFilter< TInputImage, TOutputImage >::New (   )  [static]

Method for creation through the object factory. Reimplemented from itk::UnaryFunctorImageFilter< TInputImage, TOutputImage, TFunction >.

template<typename TInputImage, typename TOutputImage = TInputImage> void itk::TensorFractionalAnisotropyImageFilter< TInputImage, TOutputImage >::PrintSelf (  std::ostream &  os, Indent  indent )  const [inline, virtual]

Print internal ivars Reimplemented from itk::InPlaceImageFilter< TInputImage, TOutputImage >. Definition at line 86 of file itkTensorFractionalAnisotropyImageFilter.h.

---

The documentation for this class was generated from the following file:

• itkTensorFractionalAnisotropyImageFilter.h

---
