itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage > Class Template Reference

Computes the inverse of a deformation field. More...

#include <itkIterativeInverseDeformationFieldImageFilter.h>

Inheritance diagram for itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >:

[legend]Collaboration diagram for itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >:

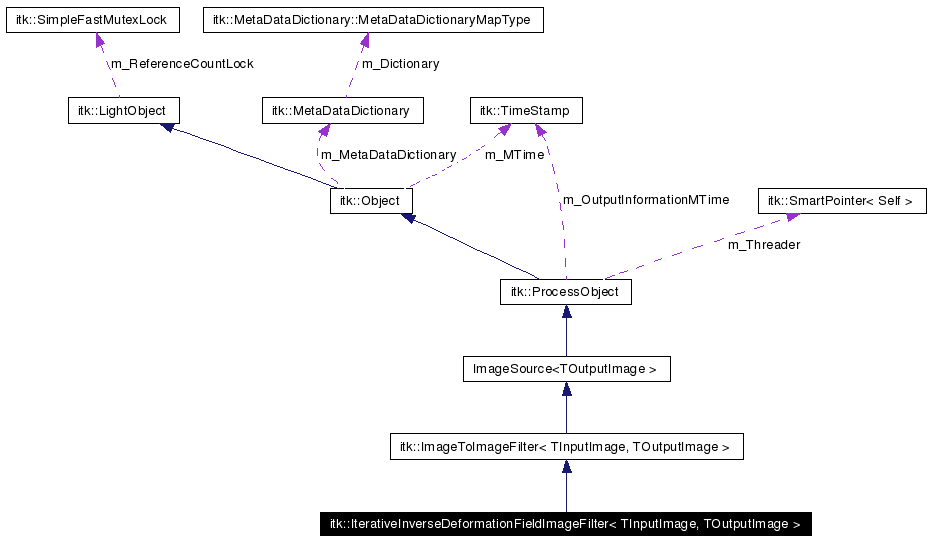

[legend]List of all members.

Public Types
typedef IterativeInverseDeformationFieldImageFilter	Self
typedef ImageToImageFilter< TInputImage, TOutputImage >	Superclass
typedef SmartPointer< Self >	Pointer
typedef SmartPointer< const Self >	ConstPointer
typedef TInputImage	InputImageType
typedef InputImageType::ConstPointer	InputImageConstPointer
typedef InputImageType::Pointer	InputImagePointer
typedef InputImageType::PointType	InputImagePointType
typedef InputImageType::RegionType	InputImageRegionType
typedef InputImageType::SpacingType	InputImageSpacingType
typedef TOutputImage	OutputImageType
typedef OutputImageType::Pointer	OutputImagePointer
typedef OutputImageType::PixelType	OutputImagePixelType
typedef OutputImageType::PointType	OutputImagePointType
typedef OutputImageType::IndexType	OutputImageIndexType
typedef OutputImagePixelType::ValueType	OutputImageValueType
typedef TimeProbe	TimeType
typedef ImageRegionConstIterator< InputImageType >	InputConstIterator
typedef ImageRegionIterator< InputImageType >	InputIterator
typedef ImageRegionIterator< OutputImageType >	OutputIterator
typedef WarpVectorImageFilter< TOutputImage, TInputImage, TOutputImage >	VectorWarperType
typedef VectorLinearInterpolateImageFunction< TInputImage, double >	FieldInterpolatorType
typedef FieldInterpolatorType::Pointer	FieldInterpolatorPointer
typedef FieldInterpolatorType::OutputType	FieldInterpolatorOutputType
Public Member Functions
virtual const char *	GetNameOfClass () const
virtual void	SetNumberOfIterations (unsigned int _arg)
virtual unsigned int	GetNumberOfIterations ()
virtual void	SetStopValue (double _arg)
virtual double	GetStopValue ()
char *	GetReport ()
Static Public Member Functions
Pointer	New ()
Protected Member Functions
	IterativeInverseDeformationFieldImageFilter ()
	~IterativeInverseDeformationFieldImageFilter ()
void	PrintSelf (std::ostream &os, Indent indent) const
void	MakeReport ()
void	GenerateData ()
Protected Attributes
unsigned int	m_NumberOfIterations
double	m_StopValue
double	m_Time

---

Detailed Description

template<class TInputImage, class TOutputImage>
class itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >

Computes the inverse of a deformation field.

IterativeInverseDeformationFieldImageFilter takes a deformation field as input and computes the deformation field that is its inverse. If the input deformation field was mapping coordinates from a space A into a space B, the output of this filter will map coordinates from the space B into the space A.

The algorithm implemented in this filter uses an iterative method for progresively refining the values of the inverse field. Starting from the direct field, at every pixel the direct mapping of this point is found, and a the nevative of the current deformation is stored in the inverse field at the nearest pixel. Then, subsequent iterations verify if any of the neigbor pixels provide a better return to the current pixel, in which case its value is taken for updating the vector in the inverse field.

This method was discussed in the users-list during February 2004.

Author:

Corinne Mattmann

Definition at line 57 of file itkIterativeInverseDeformationFieldImageFilter.h.

---

Member Typedef Documentation

template<class TInputImage, class TOutputImage> typedef SmartPointer<const Self> itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::ConstPointer

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >. Definition at line 65 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef FieldInterpolatorType::OutputType itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::FieldInterpolatorOutputType

Definition at line 97 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef FieldInterpolatorType::Pointer itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::FieldInterpolatorPointer

Definition at line 96 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef VectorLinearInterpolateImageFunction<TInputImage,double> itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::FieldInterpolatorType

Definition at line 95 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef ImageRegionConstIterator<InputImageType> itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::InputConstIterator

Definition at line 89 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef InputImageType::ConstPointer itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::InputImageConstPointer

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >. Definition at line 75 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef InputImageType::Pointer itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::InputImagePointer

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >. Definition at line 76 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef InputImageType::PointType itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::InputImagePointType

Definition at line 77 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef InputImageType::RegionType itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::InputImageRegionType

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >. Definition at line 78 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef InputImageType::SpacingType itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::InputImageSpacingType

Definition at line 79 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef TInputImage itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::InputImageType

Some typedefs. Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >. Definition at line 74 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef ImageRegionIterator<InputImageType> itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::InputIterator

Definition at line 90 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef OutputImageType::IndexType itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::OutputImageIndexType

Definition at line 84 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef OutputImageType::PixelType itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::OutputImagePixelType

Reimplemented from itk::ImageSource< TOutputImage >. Definition at line 82 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef OutputImageType::Pointer itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::OutputImagePointer

Reimplemented from itk::ImageSource< TOutputImage >. Definition at line 81 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef OutputImageType::PointType itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::OutputImagePointType

Definition at line 83 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef TOutputImage itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::OutputImageType

Some convenient typedefs. Reimplemented from itk::ImageSource< TOutputImage >. Definition at line 80 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef OutputImagePixelType::ValueType itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::OutputImageValueType

Definition at line 85 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef ImageRegionIterator<OutputImageType> itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::OutputIterator

Definition at line 91 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef SmartPointer<Self> itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::Pointer

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >. Definition at line 64 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef IterativeInverseDeformationFieldImageFilter itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::Self

Standard class typedefs. Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >. Definition at line 62 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef ImageToImageFilter<TInputImage,TOutputImage> itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::Superclass

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >. Definition at line 63 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef TimeProbe itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::TimeType

Definition at line 87 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> typedef WarpVectorImageFilter<TOutputImage,TInputImage,TOutputImage> itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::VectorWarperType

Definition at line 93 of file itkIterativeInverseDeformationFieldImageFilter.h.

---

Constructor & Destructor Documentation

template<class TInputImage, class TOutputImage> itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::IterativeInverseDeformationFieldImageFilter (   )  [protected]

template<class TInputImage, class TOutputImage> itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::~IterativeInverseDeformationFieldImageFilter (   )  [inline, protected]

Definition at line 112 of file itkIterativeInverseDeformationFieldImageFilter.h.

---

Member Function Documentation

template<class TInputImage, class TOutputImage> void itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::GenerateData (   )  [protected, virtual]

A version of GenerateData() specific for image processing filters. This implementation will split the processing across multiple threads. The buffer is allocated by this method. Then the BeforeThreadedGenerateData() method is called (if provided). Then, a series of threads are spawned each calling ThreadedGenerateData(). After all the threads have completed processing, the AfterThreadedGenerateData() method is called (if provided). If an image processing filter cannot be threaded, the filter should provide an implementation of GenerateData(). That implementation is responsible for allocating the output buffer. If a filter an be threaded, it should NOT provide a GenerateData() method but should provide a ThreadedGenerateData() instead. See also: ThreadedGenerateData() Reimplemented from itk::ImageSource< TOutputImage >.

template<class TInputImage, class TOutputImage> virtual const char* itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::GetNameOfClass (   )  const [virtual]

Run-time type information (and related methods). Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

template<class TInputImage, class TOutputImage> virtual unsigned int itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::GetNumberOfIterations (   )  [virtual]

template<class TInputImage, class TOutputImage> char* itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::GetReport (   )  [inline]

Definition at line 108 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> virtual double itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::GetStopValue (   )  [virtual]

template<class TInputImage, class TOutputImage> void itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::MakeReport (   )  [protected]

template<class TInputImage, class TOutputImage> Pointer itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::New (   )  [static]

Method for creation through the object factory. Reimplemented from itk::Object.

template<class TInputImage, class TOutputImage> void itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::PrintSelf (  std::ostream &  os, Indent  indent )  const [protected, virtual]

Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

template<class TInputImage, class TOutputImage> virtual void itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::SetNumberOfIterations (  unsigned int  _arg  )  [virtual]

template<class TInputImage, class TOutputImage> virtual void itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::SetStopValue (  double  _arg  )  [virtual]

---

Member Data Documentation

template<class TInputImage, class TOutputImage> unsigned int itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::m_NumberOfIterations [protected]

Definition at line 119 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> double itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::m_StopValue [protected]

Definition at line 120 of file itkIterativeInverseDeformationFieldImageFilter.h.

template<class TInputImage, class TOutputImage> double itk::IterativeInverseDeformationFieldImageFilter< TInputImage, TOutputImage >::m_Time [protected]

Definition at line 121 of file itkIterativeInverseDeformationFieldImageFilter.h.

---

The documentation for this class was generated from the following file:

• itkIterativeInverseDeformationFieldImageFilter.h

---
