itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel > Class Template Reference
[Image Enhancement Filters, Mathematical Morphology Image Filters]

dilation of an object in an image More...

#include <itkDilateObjectMorphologyImageFilter.h>

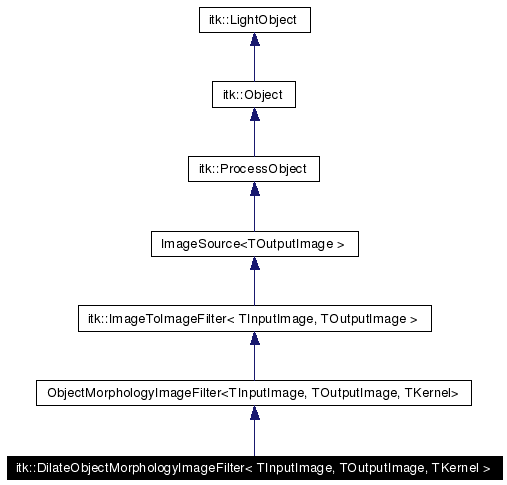

Inheritance diagram for itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >:

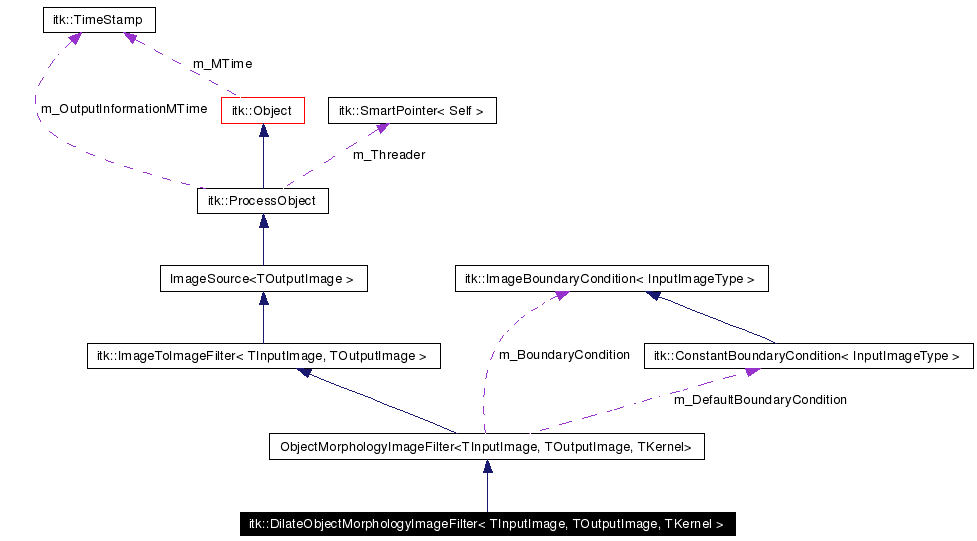

[legend]Collaboration diagram for itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >:

[legend]List of all members.

Public Types
typedef DilateObjectMorphologyImageFilter	Self
typedef ObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >	Superclass
typedef SmartPointer< Self >	Pointer
typedef SmartPointer< const Self >	ConstPointer
typedef Superclass::PixelType	PixelType
typedef TKernel	KernelType
typedef KernelType::ConstIterator	KernelIteratorType
typedef NeighborhoodIterator< TOutputImage >	OutputNeighborhoodIteratorType
typedef Superclass::DefaultBoundaryConditionType	DefaultBoundaryConditionType
Public Member Functions
virtual const char *	GetNameOfClass () const
Static Public Member Functions
Pointer	New ()
Protected Member Functions
	DilateObjectMorphologyImageFilter ()
	~DilateObjectMorphologyImageFilter ()
void	PrintSelf (std::ostream &os, Indent indent) const
void	Evaluate (OutputNeighborhoodIteratorType &nit, const KernelType &kernel)

---

Detailed Description

template<class TInputImage, class TOutputImage, class TKernel>
class itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >

dilation of an object in an image

Dilate an image using binary morphology. Pixel values matching the object value are considered the "foreground" and all other pixels are "background". This is useful in processing mask images containing only one object.

If a pixel's value is equal to the object value and the pixel is adjacent to a non-object valued pixel, then the kernel is centered on the object-value pixel and neighboring pixels covered by the kernel are assigned the object value. The structuring element is assumed to be composed of binary values (zero or one).

See also:

ObjectMorphologyImageFilter, ErodeObjectMorphologyImageFilter

BinaryDilateImageFilter

Definition at line 44 of file itkDilateObjectMorphologyImageFilter.h.

---

Member Typedef Documentation

template<class TInputImage, class TOutputImage, class TKernel> typedef SmartPointer<const Self> itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::ConstPointer

Reimplemented from itk::ObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >. Definition at line 53 of file itkDilateObjectMorphologyImageFilter.h.

template<class TInputImage, class TOutputImage, class TKernel> typedef Superclass::DefaultBoundaryConditionType itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::DefaultBoundaryConditionType

Reimplemented from itk::ObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >. Definition at line 74 of file itkDilateObjectMorphologyImageFilter.h.

template<class TInputImage, class TOutputImage, class TKernel> typedef KernelType::ConstIterator itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::KernelIteratorType

duplicates from base class to avoid compiler warnings Reimplemented from itk::ObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >. Definition at line 68 of file itkDilateObjectMorphologyImageFilter.h.

template<class TInputImage, class TOutputImage, class TKernel> typedef TKernel itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::KernelType

duplicates from base class to avoid compiler warnings Reimplemented from itk::ObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >. Definition at line 65 of file itkDilateObjectMorphologyImageFilter.h.

template<class TInputImage, class TOutputImage, class TKernel> typedef NeighborhoodIterator<TOutputImage> itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::OutputNeighborhoodIteratorType

duplicates from base class to avoid compiler warnings Reimplemented from itk::ObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >. Definition at line 71 of file itkDilateObjectMorphologyImageFilter.h.

template<class TInputImage, class TOutputImage, class TKernel> typedef Superclass::PixelType itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::PixelType

duplicates from base class to avoid compiler warnings Reimplemented from itk::ObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >. Definition at line 62 of file itkDilateObjectMorphologyImageFilter.h.

template<class TInputImage, class TOutputImage, class TKernel> typedef SmartPointer<Self> itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::Pointer

Reimplemented from itk::ObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >. Definition at line 52 of file itkDilateObjectMorphologyImageFilter.h.

template<class TInputImage, class TOutputImage, class TKernel> typedef DilateObjectMorphologyImageFilter itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::Self

Standard class typedefs. Reimplemented from itk::ObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >. Definition at line 49 of file itkDilateObjectMorphologyImageFilter.h.

template<class TInputImage, class TOutputImage, class TKernel> typedef ObjectMorphologyImageFilter<TInputImage, TOutputImage, TKernel> itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::Superclass

Reimplemented from itk::ObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >. Definition at line 51 of file itkDilateObjectMorphologyImageFilter.h.

---

Constructor & Destructor Documentation

template<class TInputImage, class TOutputImage, class TKernel> itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::DilateObjectMorphologyImageFilter (   )  [protected]

template<class TInputImage, class TOutputImage, class TKernel> itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::~DilateObjectMorphologyImageFilter (   )  [inline, protected]

Definition at line 78 of file itkDilateObjectMorphologyImageFilter.h.

---

Member Function Documentation

template<class TInputImage, class TOutputImage, class TKernel> void itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::Evaluate (  OutputNeighborhoodIteratorType &  nit, const KernelType &  kernel )  [protected, virtual]

Apply the kernel to the neighborhood given. All values in neighborhood covered by the kernel will be set to the object value. Implements itk::ObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >.

template<class TInputImage, class TOutputImage, class TKernel> virtual const char* itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::GetNameOfClass (   )  const [virtual]

Runtime information support Reimplemented from itk::ObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >.

template<class TInputImage, class TOutputImage, class TKernel> Pointer itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::New (   )  [static]

Standard New method Reimplemented from itk::Object.

template<class TInputImage, class TOutputImage, class TKernel> void itk::DilateObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >::PrintSelf (  std::ostream &  os, Indent  indent )  const [protected, virtual]

Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from itk::ObjectMorphologyImageFilter< TInputImage, TOutputImage, TKernel >.

---

The documentation for this class was generated from the following file:

• itkDilateObjectMorphologyImageFilter.h

---
