itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh > Class Template Reference

Additional to its superclass this class reimplemets the external forces methos in which the scan line algorithm is used to find highest gradient is found in the direction of the normal to each vertex within a specified range. More...

#include <itkDeformableSimplexMesh3DGradientConstraintForceFilter.h>

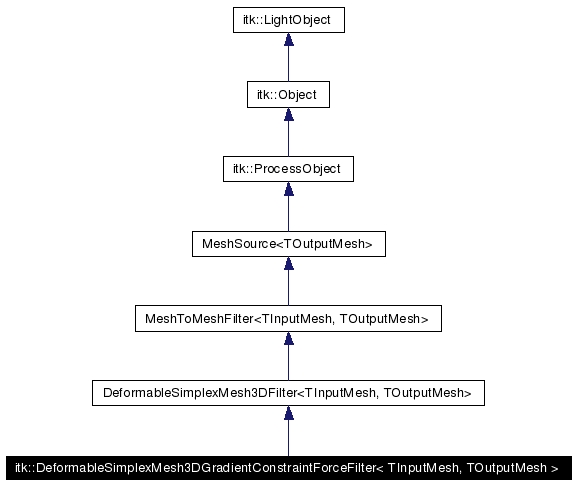

Inheritance diagram for itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >:

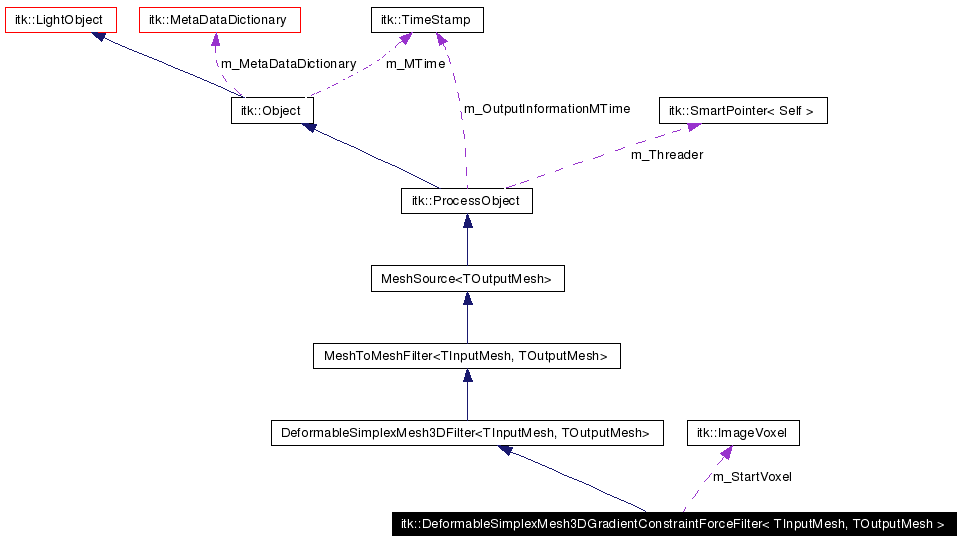

[legend]Collaboration diagram for itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >:

[legend]List of all members.

Public Types
typedef DeformableSimplexMesh3DGradientConstraintForceFilter	Self
typedef DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >	Superclass
typedef SmartPointer< Self >	Pointer
typedef SmartPointer< const Self >	ConstPointer
typedef TInputMesh	InputMeshType
typedef TOutputMesh	OutputMeshType
typedef Superclass::PointType	PointType
typedef Superclass::GradientIndexType	GradientIndexType
typedef Superclass::GradientIndexValueType	GradientIndexValueType
typedef InputMeshType::Pointer	InputMeshPointer
typedef OutputMeshType::Pointer	OutputMeshPointer
typedef InputMeshType::PixelType	PixelType
typedef Image< PixelType, 3 >	GradientIntensityImageType
typedef GradientIntensityImageType::Pointer	GradientIntensityImagePointer
typedef Image< float, 3 >	OriginalImageType
typedef OriginalImageType::IndexType	OriginalImageIndexType
typedef OriginalImageIndexType::IndexValueType	ImageIndexValueType
typedef OriginalImageType::Pointer	OriginalImagePointer
enum	SIDE { NORMAL, INVERSE, BOTH }
Public Member Functions
virtual const char *	GetNameOfClass () const
virtual void	SetImage (OriginalImagePointer _arg)
virtual void	SetRange (int _arg)
virtual int	GetRange ()
Static Public Member Functions
Pointer	New ()
Protected Member Functions
	DeformableSimplexMesh3DGradientConstraintForceFilter ()
	~DeformableSimplexMesh3DGradientConstraintForceFilter ()
	DeformableSimplexMesh3DGradientConstraintForceFilter (const Self &)
void	operator= (const Self &)
void	PrintSelf (std::ostream &os, Indent indent) const
virtual void	ComputeExternalForce (SimplexMeshGeometry *data)
Protected Attributes
int	m_Range

---

Detailed Description

template<class TInputMesh, class TOutputMesh>
class itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >

Additional to its superclass this class reimplemets the external forces methos in which the scan line algorithm is used to find highest gradient is found in the direction of the normal to each vertex within a specified range.

Author:

Leila Baghdadi. Mouse Imaging Centre, Hospital for Sick Children, Toronto, Ontario,Canada. I acknowledge the helpful insights of Herve Delingette of INRIA, France.

Definition at line 88 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

---

Member Typedef Documentation

template<class TInputMesh, class TOutputMesh> typedef SmartPointer<const Self> itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::ConstPointer

Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >. Definition at line 99 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef Superclass::GradientIndexType itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::GradientIndexType

Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >. Definition at line 111 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef Superclass::GradientIndexValueType itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::GradientIndexValueType

Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >. Definition at line 112 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef GradientIntensityImageType::Pointer itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::GradientIntensityImagePointer

Definition at line 121 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef Image<PixelType, 3> itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::GradientIntensityImageType

Definition at line 120 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef OriginalImageIndexType::IndexValueType itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::ImageIndexValueType

Definition at line 125 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef InputMeshType::Pointer itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::InputMeshPointer

Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >. Definition at line 115 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef TInputMesh itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::InputMeshType

Some typedefs. Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >. Definition at line 108 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef OriginalImageType::IndexType itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::OriginalImageIndexType

Definition at line 124 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef OriginalImageType::Pointer itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::OriginalImagePointer

Definition at line 126 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef Image<float, 3> itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::OriginalImageType

Definition at line 123 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef OutputMeshType::Pointer itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::OutputMeshPointer

Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >. Definition at line 116 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef TOutputMesh itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::OutputMeshType

Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >. Definition at line 109 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef InputMeshType::PixelType itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::PixelType

Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >. Definition at line 118 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef SmartPointer<Self> itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::Pointer

Smart pointer typedef support Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >. Definition at line 98 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef Superclass::PointType itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::PointType

Other definitions. Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >. Definition at line 110 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef DeformableSimplexMesh3DGradientConstraintForceFilter itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::Self

Standard "Self" typedefs. Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >. Definition at line 92 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

template<class TInputMesh, class TOutputMesh> typedef DeformableSimplexMesh3DFilter<TInputMesh, TOutputMesh> itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::Superclass

Standard "Superclass" typedef. Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >. Definition at line 95 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

---

Member Enumeration Documentation

template<class TInputMesh, class TOutputMesh> enum itk::DeformableSimplexMesh3DGradientConstraintForceFilter::SIDE

Enumeration values: NORMAL  INVERSE  BOTH  Definition at line 133 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

---

Constructor & Destructor Documentation

template<class TInputMesh, class TOutputMesh> itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::DeformableSimplexMesh3DGradientConstraintForceFilter (   )  [protected]

template<class TInputMesh, class TOutputMesh> itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::~DeformableSimplexMesh3DGradientConstraintForceFilter (   )  [protected]

template<class TInputMesh, class TOutputMesh> itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::DeformableSimplexMesh3DGradientConstraintForceFilter (  const Self &   )  [inline, protected]

Definition at line 151 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h.

---

Member Function Documentation

template<class TInputMesh, class TOutputMesh> virtual void itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::ComputeExternalForce (  SimplexMeshGeometry *  data  )  [protected, virtual]

Compute the external force component Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >.

template<class TInputMesh, class TOutputMesh> virtual const char* itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::GetNameOfClass (   )  const [virtual]

Run-time type information (and related methods). Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >.

template<class TInputMesh, class TOutputMesh> virtual int itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::GetRange (   )  [virtual]

control the range of search for Bresenham at normal line

template<class TInputMesh, class TOutputMesh> Pointer itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::New (   )  [static]

Method for creation through the object factory. Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >.

template<class TInputMesh, class TOutputMesh> void itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::operator= (  const Self &   )  [inline, protected]

Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >. Definition at line 154 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h. References itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::m_Range.

template<class TInputMesh, class TOutputMesh> void itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::PrintSelf (  std::ostream &  os, Indent  indent )  const [protected, virtual]

Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >.

template<class TInputMesh, class TOutputMesh> virtual void itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::SetImage (  OriginalImagePointer  _arg  )  [virtual]

Set Original image

template<class TInputMesh, class TOutputMesh> virtual void itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::SetRange (  int  _arg  )  [virtual]

control the range of search for Bresenham at normal line

---

Member Data Documentation

template<class TInputMesh, class TOutputMesh> int itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::m_Range [protected]

Range of search for Bresenham algorithm (normal line at each vertex) Definition at line 165 of file itkDeformableSimplexMesh3DGradientConstraintForceFilter.h. Referenced by itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >::operator=().

---

The documentation for this class was generated from the following file:

• itkDeformableSimplexMesh3DGradientConstraintForceFilter.h

---
