itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh > Class Template Reference
[Mesh Filters, Mesh Segmentation Filters]

Three-dimensional deformable model for image segmentation. More...

#include <itkDeformableSimplexMesh3DFilter.h>

Inheritance diagram for itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >:

Inheritance graph
[legend]

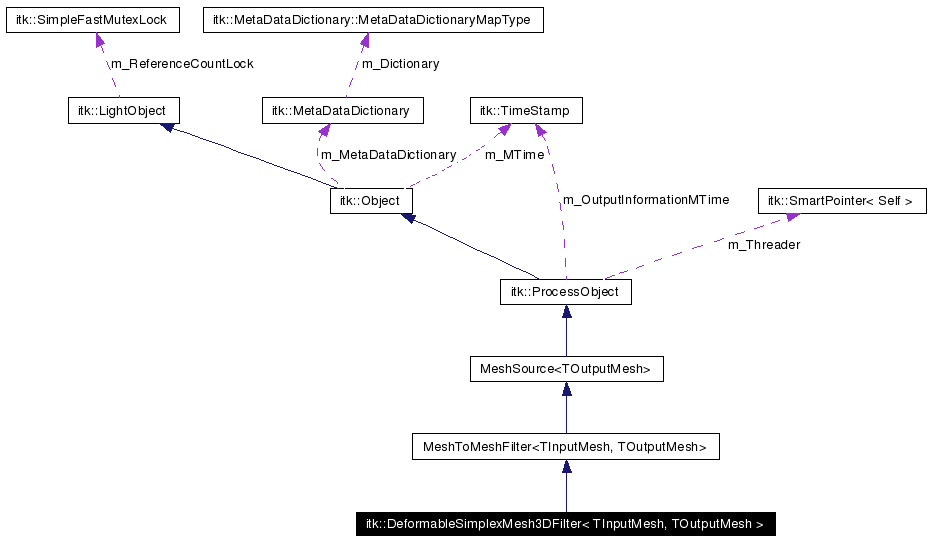

Collaboration diagram for itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef DeformableSimplexMesh3DFilter Self
typedef MeshToMeshFilter<
TInputMesh, TOutputMesh > 		Superclass
typedef SmartPointer< Self > Pointer
typedef SmartPointer< const
Self > 		ConstPointer
typedef TInputMesh InputMeshType
typedef TOutputMesh OutputMeshType
typedef InputMeshType::PointsContainerPointer InputPointsContainerPointer
typedef InputMeshType::PointsContainer InputPointsContainer
typedef InputMeshType::PointsContainer::Iterator InputPointsContainerIterator
typedef InputMeshType::PointType PointType
typedef PointType::VectorType VectorType
typedef CovariantVector< typename
VectorType::ValueType, 3 > 		CovariantVectorType
typedef InputMeshType::PixelType PixelType
typedef CovariantVector< PixelType, 3 > GradientType
typedef Image< GradientType, 3 > GradientImageType
typedef Image< unsigned char, 3 > BinaryOutput
typedef Image< float, 3 > MagnitudeOutput
typedef GradientImageType::Pointer GradientImagePointer
typedef GradientImageType::IndexType GradientIndexType
typedef GradientImageType::PixelType GradientPixelType
typedef GradientIndexType::IndexValueType GradientIndexValueType
typedef GradientImageType::SizeType GradientImageSizeType
typedef InputMeshType::Pointer InputMeshPointer
typedef OutputMeshType::Pointer OutputMeshPointer
typedef InputMeshType::PointType MeshPointType
typedef InputMeshType::CellsContainerPointer CellsContainerPointer
typedef InputMeshType::CellsContainer::Iterator CellsContainerIterator
typedef InputMeshType::NeighborListType InputNeighbors
typedef InputMeshType::NeighborListType::iterator InputNeighborsIterator
typedef itk::MapContainer<
unsigned long, std::set<
unsigned long > > 		VertexNeighborListType
typedef std::set< unsigned
long > 		NeighborSetType
typedef std::set< unsigned
long > 		IndexSetType
typedef NeighborSetType::iterator NeighborSetIterator
typedef IndexSetType::iterator IndexSetIterator
typedef InputMeshType::GeometryMapType GeometryMapType
typedef GeometryMapType::Pointer GeometryMapPointer
typedef GeometryMapType::Iterator GeometryMapIterator

Public Member Functions

virtual const char * GetNameOfClass () const
virtual void SetGradient (GradientImagePointer _arg)
virtual GradientImagePointer GetGradient ()
virtual void SetAlpha (double _arg)
virtual double GetAlpha ()
virtual void SetBeta (double _arg)
virtual double GetBeta ()
virtual void SetGamma (double _arg)
virtual double GetGamma ()
virtual void SetDamping (double _arg)
virtual double GetDamping ()
virtual void SetRigidity (unsigned int _arg)
virtual unsigned int GetRigidity ()
virtual void SetData (GeometryMapType *_arg)
virtual GeometryMapType * GetData ()
virtual int GetStep ()
virtual void SetIterations (int _arg)
virtual int GetIterations ()
virtual int GetImageWidth ()
virtual int GetImageHeight ()
virtual int GetImageDepth ()

Static Public Member Functions

Pointer New ()

Protected Member Functions

 DeformableSimplexMesh3DFilter ()
 ~DeformableSimplexMesh3DFilter ()
 DeformableSimplexMesh3DFilter (const Self &)
void operator= (const Self &)
void PrintSelf (std::ostream &os, Indent indent) const
virtual void GenerateData ()
virtual void Initialize ()
virtual void ComputeGeometry ()
virtual void ComputeDisplacement ()
virtual void ComputeInternalForce (SimplexMeshGeometry *data)
virtual void ComputeExternalForce (SimplexMeshGeometry *data)
virtual void ComputeOutput ()
virtual void UpdateReferenceMetrics ()
double L_Func (double r, double d, double phi)
PointType ComputeBarycentricCoordinates (PointType p, SimplexMeshGeometry *data)

Protected Attributes

double m_Alpha
double m_Beta
double m_Gamma
double m_Damping
unsigned int m_Rigidity
int m_Step
int m_ImageWidth
int m_ImageHeight
int m_ImageDepth
int m_Iterations
GeometryMapPointer m_Data
GradientImagePointer m_Gradient

Detailed Description

template<class TInputMesh, class TOutputMesh>
class itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >

Three-dimensional deformable model for image segmentation.

DeformableSimplexMesh3DFilter is a discrete three-dimensional deformable model, which can be used to deform a 3-D SimplexMesh.

The mesh deformation is constrained by internal forces. The interal force can be scaled via SetAlpha (typical values are 0.01 < alpha < 0.3). The external force is derived from the image one wants to delineate. Therefore an image of type GradientImageType needs to be set by calling SetGradientImage(...). The external forces are scaled via SetBeta (typical values are 0.01 < beta < 1). One still needs to play around with these values.

To control the smoothness of the mesh a rigidity parameter can be adjusted. Low values (1 or 0) allow areas with high curvature. Higher values (around 7 or 8) will make the mesh smoother.

By setting the gamma parameter the regularity of the mesh is controlled. Low values (< 0.03) produce more regular mesh. Higher values ( 0.3 < gamma < 0.2) will allow to move the vertices to regions of higher curvature.

This approach for segmentation follows that of Delingette et al. (1997).

This filter currently assumes that the spacing of the input image is 1.

The user has to set the number of iterations for mesh evolution.

Author:
Thomas Boettger. Division Medical and Biological Informatics, German Cancer Research Center, Heidelberg.

Definition at line 69 of file itkDeformableSimplexMesh3DFilter.h.

Member Typedef Documentation

template<class TInputMesh, class TOutputMesh>
typedef Image<unsigned char, 3> itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::BinaryOutput


Definition at line 106 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef InputMeshType::CellsContainer::Iterator itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::CellsContainerIterator


Definition at line 129 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef InputMeshType::CellsContainerPointer itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::CellsContainerPointer


Definition at line 128 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef SmartPointer<const Self> itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::ConstPointer


Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

Definition at line 80 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef CovariantVector< typename VectorType::ValueType, 3 > itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::CovariantVectorType


Definition at line 100 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef GeometryMapType::Iterator itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GeometryMapIterator


Definition at line 142 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef GeometryMapType::Pointer itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GeometryMapPointer


Definition at line 141 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef InputMeshType::GeometryMapType itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GeometryMapType


Definition at line 140 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef GradientImageType::Pointer itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GradientImagePointer


Definition at line 109 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef GradientImageType::SizeType itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GradientImageSizeType


Definition at line 113 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef Image<GradientType, 3> itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GradientImageType


Definition at line 105 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef GradientImageType::IndexType itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GradientIndexType


Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

Definition at line 110 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef GradientIndexType::IndexValueType itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GradientIndexValueType


Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

Definition at line 112 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef GradientImageType::PixelType itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GradientPixelType


Definition at line 111 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef CovariantVector<PixelType, 3> itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GradientType


Image and Image iterator definition.

Definition at line 104 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef IndexSetType::iterator itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::IndexSetIterator


Definition at line 137 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef std::set<unsigned long> itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::IndexSetType


Definition at line 135 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef InputMeshType::Pointer itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::InputMeshPointer


Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

Definition at line 123 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef TInputMesh itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::InputMeshType


Some typedefs.

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

Definition at line 89 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef InputMeshType::NeighborListType itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::InputNeighbors


Definition at line 130 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef InputMeshType::NeighborListType::iterator itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::InputNeighborsIterator


Definition at line 131 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef InputMeshType::PointsContainer itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::InputPointsContainer


Definition at line 93 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef InputMeshType::PointsContainer::Iterator itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::InputPointsContainerIterator


Definition at line 94 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef InputMeshType::PointsContainerPointer itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::InputPointsContainerPointer


Definition at line 92 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef Image<float, 3> itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::MagnitudeOutput


Definition at line 107 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef InputMeshType::PointType itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::MeshPointType


Definition at line 127 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef NeighborSetType::iterator itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::NeighborSetIterator


Definition at line 136 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef std::set<unsigned long> itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::NeighborSetType


Definition at line 134 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef OutputMeshType::Pointer itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::OutputMeshPointer


Reimplemented from itk::MeshSource< TOutputMesh >.

Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

Definition at line 124 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef TOutputMesh itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::OutputMeshType


Reimplemented from itk::MeshSource< TOutputMesh >.

Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

Definition at line 90 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef InputMeshType::PixelType itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::PixelType


Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

Definition at line 101 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef SmartPointer<Self> itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::Pointer


Smart pointer typedef support

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

Definition at line 79 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef InputMeshType::PointType itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::PointType


Other definitions.

Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

Definition at line 97 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef DeformableSimplexMesh3DFilter itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::Self


Standard "Self" typedef.

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

Definition at line 73 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef MeshToMeshFilter<TInputMesh, TOutputMesh> itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::Superclass


Standard "Superclass" typedef.

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

Definition at line 76 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef PointType::VectorType itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::VectorType


Definition at line 98 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
typedef itk::MapContainer<unsigned long, std::set<unsigned long> > itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::VertexNeighborListType


Definition at line 133 of file itkDeformableSimplexMesh3DFilter.h.

Constructor & Destructor Documentation

template<class TInputMesh, class TOutputMesh>
itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::DeformableSimplexMesh3DFilter (   )  [protected]


template<class TInputMesh, class TOutputMesh>
itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::~DeformableSimplexMesh3DFilter (   )  [protected]


template<class TInputMesh, class TOutputMesh>
itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::DeformableSimplexMesh3DFilter (  const Self &   )  [protected]


Member Function Documentation

template<class TInputMesh, class TOutputMesh>
PointType itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::ComputeBarycentricCoordinates (  PointType  p,
SimplexMeshGeometry *  data
)  [protected]


Method computes the barycentric coordinates of the passed point

template<class TInputMesh, class TOutputMesh>
virtual void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::ComputeDisplacement (   )  [protected, virtual]


Computes the displacement of each point. Therefore internal and external forces are computed and multiplied by the constants (alpha and beta) set by the user.

template<class TInputMesh, class TOutputMesh>
virtual void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::ComputeExternalForce (  SimplexMeshGeometry *  data  )  [protected, virtual]


Compute the external force component

Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

template<class TInputMesh, class TOutputMesh>
virtual void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::ComputeGeometry (   )  [protected, virtual]


Compute geometric properties like curvature and normals, which are necessary for the computation of the internal force components for each point of the mesh.

template<class TInputMesh, class TOutputMesh>
virtual void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::ComputeInternalForce (  SimplexMeshGeometry *  data  )  [protected, virtual]


Compute the internal force component

template<class TInputMesh, class TOutputMesh>
virtual void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::ComputeOutput (   )  [protected, virtual]


At the and of the deformation the output mesh is created by creating a new mesh

template<class TInputMesh, class TOutputMesh>
virtual void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GenerateData (  void   )  [protected, virtual]


This method causes the filter to generate its output.

Reimplemented from itk::ProcessObject.

template<class TInputMesh, class TOutputMesh>
virtual double itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GetAlpha (   )  [virtual]


Get internal force scaling factor

template<class TInputMesh, class TOutputMesh>
virtual double itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GetBeta (   )  [virtual]


Get external force scaling factor

template<class TInputMesh, class TOutputMesh>
virtual double itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GetDamping (   )  [virtual]


Get reference metrics update scaling factor

template<class TInputMesh, class TOutputMesh>
virtual GeometryMapType* itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GetData (   )  [virtual]


template<class TInputMesh, class TOutputMesh>
virtual double itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GetGamma (   )  [virtual]


Get reference metrics update scaling factor

template<class TInputMesh, class TOutputMesh>
virtual GradientImagePointer itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GetGradient (   )  [virtual]


Getter for gradient image

template<class TInputMesh, class TOutputMesh>
virtual int itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GetImageDepth (   )  [virtual]


Width, height and depth opf image

template<class TInputMesh, class TOutputMesh>
virtual int itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GetImageHeight (   )  [virtual]


Width, height and depth opf image

template<class TInputMesh, class TOutputMesh>
virtual int itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GetImageWidth (   )  [virtual]


Width, height and depth opf image

template<class TInputMesh, class TOutputMesh>
virtual int itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GetIterations (   )  [virtual]


Set number of iterations for deformation process

template<class TInputMesh, class TOutputMesh>
virtual const char* itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GetNameOfClass (   )  const [virtual]


Run-time type information (and related methods).

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

template<class TInputMesh, class TOutputMesh>
virtual unsigned int itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GetRigidity (   )  [virtual]


control smoothness of the mesh

template<class TInputMesh, class TOutputMesh>
virtual int itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::GetStep (   )  [virtual]


current iteration number

template<class TInputMesh, class TOutputMesh>
virtual void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::Initialize (   )  [protected, virtual]


Initializes the datastructures necessary for mesh deformation with the values from the passed input mesh.

template<class TInputMesh, class TOutputMesh>
double itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::L_Func (  double  r,
double  d,
double  phi
)  [protected]


L function implemented follwoing the paper of Delingette

template<class TInputMesh, class TOutputMesh>
Pointer itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::New (   )  [static]


Method of creation through the object factory.

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

template<class TInputMesh, class TOutputMesh>
void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::operator= (  const Self &   )  [protected]


Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

template<class TInputMesh, class TOutputMesh>
void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::PrintSelf (  std::ostream &  os,
Indent  indent
)  const [protected, virtual]


Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from itk::MeshSource< TOutputMesh >.

Reimplemented in itk::DeformableSimplexMesh3DBalloonForceFilter< TInputMesh, TOutputMesh >, and itk::DeformableSimplexMesh3DGradientConstraintForceFilter< TInputMesh, TOutputMesh >.

template<class TInputMesh, class TOutputMesh>
virtual void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::SetAlpha (  double  _arg  )  [virtual]


Set scalar factor for internal force

template<class TInputMesh, class TOutputMesh>
virtual void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::SetBeta (  double  _arg  )  [virtual]


Set external force scaling factor

template<class TInputMesh, class TOutputMesh>
virtual void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::SetDamping (  double  _arg  )  [virtual]


Set reference metrics update scaling factor

template<class TInputMesh, class TOutputMesh>
virtual void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::SetData (  GeometryMapType *  _arg  )  [virtual]


template<class TInputMesh, class TOutputMesh>
virtual void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::SetGamma (  double  _arg  )  [virtual]


Set reference metrics update scaling factor

template<class TInputMesh, class TOutputMesh>
virtual void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::SetGradient (  GradientImagePointer  _arg  )  [virtual]


Setter for gradient image

template<class TInputMesh, class TOutputMesh>
virtual void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::SetIterations (  int  _arg  )  [virtual]


Set number of iterations for deformation process

template<class TInputMesh, class TOutputMesh>
virtual void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::SetRigidity (  unsigned int  _arg  )  [virtual]


control smoothness of the mesh

template<class TInputMesh, class TOutputMesh>
virtual void itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::UpdateReferenceMetrics (   )  [protected, virtual]


Method updates the reference metrics for each mesh point

Member Data Documentation

template<class TInputMesh, class TOutputMesh>
double itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::m_Alpha [protected]


Scalar defining the influence of the internal forces Values should lie between 0.001 and 0.3. Higher values increase the stiffness of the mesh

Definition at line 281 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
double itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::m_Beta [protected]


Scalar defining the influence of the external force components The choice for this parameter strongly depends on the underlying data. Typical value range from 0.00001 to 0.3

Definition at line 289 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
double itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::m_Damping [protected]


Definition at line 298 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
GeometryMapPointer itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::m_Data [protected]


map stores a Geometry object for every mesh point

Definition at line 328 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
double itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::m_Gamma [protected]


Gamma influneces the distribution of the mesh points. It should lie between 0.01 and 0.2. Smaller values force the mesh to be more regular. When increasing gamma, mesh points will have higher density in places of high curvature.

Definition at line 297 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
GradientImagePointer itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::m_Gradient [protected]


Definition at line 331 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
int itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::m_ImageDepth [protected]


Image size

Definition at line 319 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
int itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::m_ImageHeight [protected]


Image size

Definition at line 316 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
int itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::m_ImageWidth [protected]


Image size

Definition at line 313 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
int itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::m_Iterations [protected]


This threshold decides when to stop the model.

Definition at line 322 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
unsigned int itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::m_Rigidity [protected]


This scalar determines the smoothness of the surface model. Values should range from 0 to 10. It determines the radius of the neighborhood during internal force computation using the curvature shape contraint. The higher the rigidity the higher the smoothness.

Definition at line 306 of file itkDeformableSimplexMesh3DFilter.h.

template<class TInputMesh, class TOutputMesh>
int itk::DeformableSimplexMesh3DFilter< TInputMesh, TOutputMesh >::m_Step [protected]


Number of iterations

Definition at line 310 of file itkDeformableSimplexMesh3DFilter.h.

The documentation for this class was generated from the following file:
Generated at Thu May 25 00:46:13 2006 for ITK by doxygen 1.3.5 written by Dimitri van Heesch, © 1997-2000
