vtkSMNumberOfGroupsDomain Class Reference

restricts the number of groups of input More...

#include <vtkSMNumberOfGroupsDomain.h>

Inheritance diagram for vtkSMNumberOfGroupsDomain:

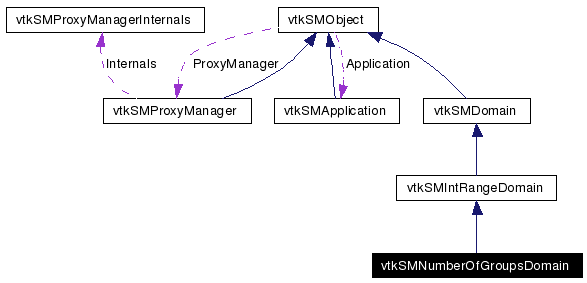

[legend]Collaboration diagram for vtkSMNumberOfGroupsDomain:

[legend]List of all members.

Public Types
enum	NumberOfGroups { NOT_SET = 0, SINGLE = 1, MULTIPLE = 2 }
Public Member Functions
	vtkTypeRevisionMacro (vtkSMNumberOfGroupsDomain, vtkSMIntRangeDomain)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual int	IsInDomain (vtkSMProperty *property)
int	IsInDomain (vtkSMSourceProxy *proxy)
virtual void	Update (vtkSMProperty *)
virtual void	SetGroupMultiplicity (unsigned char)
virtual unsigned char	GetGroupMultiplicity ()
Static Public Member Functions
vtkSMNumberOfGroupsDomain *	New ()
Protected Member Functions
	vtkSMNumberOfGroupsDomain ()
	~vtkSMNumberOfGroupsDomain ()
virtual int	ReadXMLAttributes (vtkSMProperty *prop, vtkPVXMLElement *element)
virtual void	SaveState (const char *name, ostream *file, vtkIndent indent)
void	Update (vtkSMProxyProperty *pp)
Protected Attributes
unsigned char	GroupMultiplicity

---

Detailed Description

restricts the number of groups of input

vtkSMNumberOfGroupsDomain requires that the source proxy pointed by the property has an output with the specified multiplicity of groups: SINGLE or MULTIPLE. Valid XML attributes are:

 * multiplicity - can be either single or multiple


See also:

vtkSMDomain

Definition at line 36 of file vtkSMNumberOfGroupsDomain.h.

---

Member Enumeration Documentation

enum vtkSMNumberOfGroupsDomain::NumberOfGroups

Enumeration values: NOT_SET  SINGLE  MULTIPLE  Definition at line 65 of file vtkSMNumberOfGroupsDomain.h.

---

Constructor & Destructor Documentation

vtkSMNumberOfGroupsDomain::vtkSMNumberOfGroupsDomain (   )  [protected]

vtkSMNumberOfGroupsDomain::~vtkSMNumberOfGroupsDomain (   )  [protected]

---

Member Function Documentation

vtkSMNumberOfGroupsDomain* vtkSMNumberOfGroupsDomain::New (   )  [static]

Reimplemented from vtkSMIntRangeDomain.

vtkSMNumberOfGroupsDomain::vtkTypeRevisionMacro (  vtkSMNumberOfGroupsDomain  , vtkSMIntRangeDomain  )

void vtkSMNumberOfGroupsDomain::PrintSelf (  ostream &  os, vtkIndent  indent )

Reimplemented from vtkSMIntRangeDomain.

virtual int vtkSMNumberOfGroupsDomain::IsInDomain (  vtkSMProperty *  property  )  [virtual]

Returns true if the value of the propery is in the domain. The propery has to be a vtkSMProxyProperty which points to a vtkSMSourceProxy. If the number of groups contained by the source matches the criteria set in the domain, returns 1. Returns 0 otherwise. Reimplemented from vtkSMIntRangeDomain.

int vtkSMNumberOfGroupsDomain::IsInDomain (  vtkSMSourceProxy *  proxy  )

If the number of groups contained by the source matches the criteria set in the domain, returns 1. Returns 0 otherwise.

virtual void vtkSMNumberOfGroupsDomain::Update (  vtkSMProperty *   )  [virtual]

Update self checking the "unchecked" values of all required properties. Overwritten by sub-classes. Reimplemented from vtkSMIntRangeDomain.

virtual void vtkSMNumberOfGroupsDomain::SetGroupMultiplicity (  unsigned  char  )  [virtual]

Set/get the group multiplicity. Can be either SINGLE or MULTIPLE.

virtual unsigned char vtkSMNumberOfGroupsDomain::GetGroupMultiplicity (   )  [virtual]

Set/get the group multiplicity. Can be either SINGLE or MULTIPLE.

virtual int vtkSMNumberOfGroupsDomain::ReadXMLAttributes (  vtkSMProperty *  prop, vtkPVXMLElement *  element )  [protected, virtual]

Set the appropriate ivars from the xml element. Should be overwritten by subclass if adding ivars. Reimplemented from vtkSMIntRangeDomain.

virtual void vtkSMNumberOfGroupsDomain::SaveState (  const char *  name, ostream *  file, vtkIndent  indent )  [protected, virtual]

Saves the state of the object in XML format. Should be overwritten by proxies and properties. Reimplemented from vtkSMIntRangeDomain.

void vtkSMNumberOfGroupsDomain::Update (  vtkSMProxyProperty *  pp  )  [protected]

---

Member Data Documentation

unsigned char vtkSMNumberOfGroupsDomain::GroupMultiplicity [protected]

Definition at line 85 of file vtkSMNumberOfGroupsDomain.h.

---

The documentation for this class was generated from the following file:

• Servers/ServerManager/vtkSMNumberOfGroupsDomain.h

---
