vtkSMLODDisplayProxy Class Reference

a simple display proxy. More...

#include <vtkSMLODDisplayProxy.h>

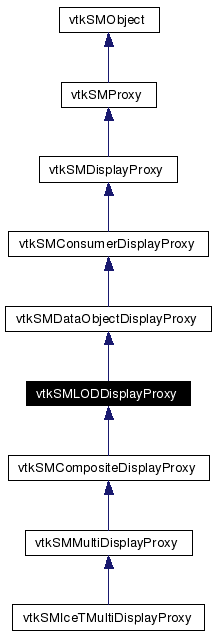

Inheritance diagram for vtkSMLODDisplayProxy:

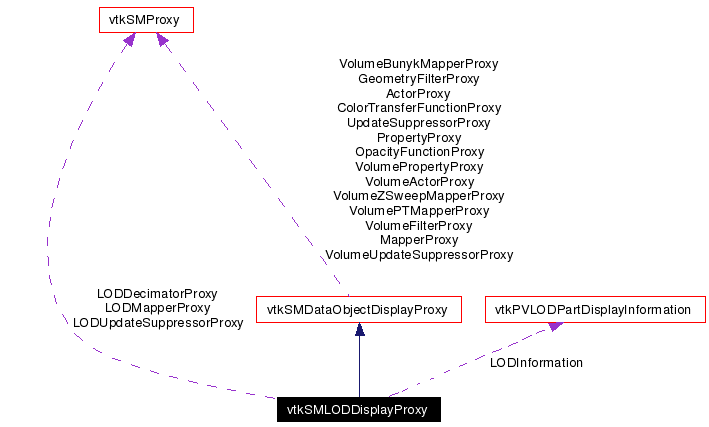

[legend]Collaboration diagram for vtkSMLODDisplayProxy:

[legend]List of all members.

Public Types
enum	{ InformationInvalidatedEvent = 2000 }
Public Member Functions
	vtkTypeRevisionMacro (vtkSMLODDisplayProxy, vtkSMDataObjectDisplayProxy)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetLODResolution (int res)
virtual void	CacheUpdate (int idx, int total)
virtual void	Update ()
virtual void	InvalidateGeometry ()
virtual vtkPVLODPartDisplayInformation *	GetLODInformation ()
Static Public Member Functions
vtkSMLODDisplayProxy *	New ()
Protected Member Functions
	vtkSMLODDisplayProxy ()
	~vtkSMLODDisplayProxy ()
virtual void	SetupVolumePipeline ()
virtual void	CreateVTKObjects (int numObjects)
void	InvalidateLODGeometry ()
void	UpdateLODPipeline ()
virtual void	SetupPipeline ()
virtual void	SetupDefaults ()
Protected Attributes
vtkSMProxy *	LODDecimatorProxy
vtkSMProxy *	LODUpdateSuppressorProxy
vtkSMProxy *	LODMapperProxy
int	LODResolution
int	LODGeometryIsValid
int	LODInformationIsValid
vtkPVLODPartDisplayInformation *	LODInformation

---

Detailed Description

a simple display proxy.

Definition at line 27 of file vtkSMLODDisplayProxy.h.

---

Member Enumeration Documentation

anonymous enum

Enumeration values: InformationInvalidatedEvent  Definition at line 55 of file vtkSMLODDisplayProxy.h.

---

Constructor & Destructor Documentation

vtkSMLODDisplayProxy::vtkSMLODDisplayProxy (   )  [protected]

vtkSMLODDisplayProxy::~vtkSMLODDisplayProxy (   )  [protected]

---

Member Function Documentation

vtkSMLODDisplayProxy* vtkSMLODDisplayProxy::New (   )  [static]

Reimplemented from vtkSMDataObjectDisplayProxy. Reimplemented in vtkSMCompositeDisplayProxy, vtkSMIceTMultiDisplayProxy, and vtkSMMultiDisplayProxy.

vtkSMLODDisplayProxy::vtkTypeRevisionMacro (  vtkSMLODDisplayProxy  , vtkSMDataObjectDisplayProxy  )

void vtkSMLODDisplayProxy::PrintSelf (  ostream &  os, vtkIndent  indent )

Reimplemented from vtkSMDataObjectDisplayProxy. Reimplemented in vtkSMCompositeDisplayProxy, vtkSMIceTMultiDisplayProxy, and vtkSMMultiDisplayProxy.

virtual void vtkSMLODDisplayProxy::SetLODResolution (  int  res  )  [virtual]

Set the number of bins per axes on the quadric decimation filter.

virtual void vtkSMLODDisplayProxy::CacheUpdate (  int  idx, int  total )  [virtual]

For flip books. Reimplemented from vtkSMDataObjectDisplayProxy. Reimplemented in vtkSMCompositeDisplayProxy.

virtual void vtkSMLODDisplayProxy::Update (   )  [virtual]

This method calls a ForceUpdate on the UpdateSuppressor if the Geometry is not valid. Reimplemented from vtkSMDataObjectDisplayProxy. Reimplemented in vtkSMCompositeDisplayProxy, and vtkSMMultiDisplayProxy.

virtual void vtkSMLODDisplayProxy::InvalidateGeometry (   )  [virtual]

Invalidates Geometry. Results in removal of any cached geometry. Also, marks the current geometry as invalid, thus a subsequent call to Update will result in call to ForceUpdate on the UpdateSuppressor(s), if any. Reimplemented from vtkSMDataObjectDisplayProxy.

virtual vtkPVLODPartDisplayInformation* vtkSMLODDisplayProxy::GetLODInformation (   )  [virtual]

Returns an up to data information object. Do not keep a reference to this object. Reimplemented in vtkSMCompositeDisplayProxy.

virtual void vtkSMLODDisplayProxy::SetupVolumePipeline (   )  [protected, virtual]

Set up the vtkUnstructuredGrid (Volume) rendering pipeline. Reimplemented from vtkSMDataObjectDisplayProxy. Reimplemented in vtkSMCompositeDisplayProxy.

virtual void vtkSMLODDisplayProxy::SetupPipeline (   )  [protected, virtual]

Set up the PolyData rendering pipeline. Reimplemented from vtkSMDataObjectDisplayProxy. Reimplemented in vtkSMCompositeDisplayProxy, and vtkSMIceTMultiDisplayProxy.

virtual void vtkSMLODDisplayProxy::SetupDefaults (   )  [protected, virtual]

Set up the PolyData rendering pipeline. Reimplemented from vtkSMDataObjectDisplayProxy. Reimplemented in vtkSMCompositeDisplayProxy, and vtkSMIceTMultiDisplayProxy.

virtual void vtkSMLODDisplayProxy::CreateVTKObjects (  int  numObjects  )  [protected, virtual]

Given the number of objects (numObjects), class name (VTKClassName) and server ids ( this->GetServerIDs()), this methods instantiates the objects on the server(s) Reimplemented from vtkSMDataObjectDisplayProxy. Reimplemented in vtkSMCompositeDisplayProxy, vtkSMIceTMultiDisplayProxy, and vtkSMMultiDisplayProxy.

void vtkSMLODDisplayProxy::InvalidateLODGeometry (   )  [protected]

void vtkSMLODDisplayProxy::UpdateLODPipeline (   )  [protected]

---

Member Data Documentation

vtkSMProxy* vtkSMLODDisplayProxy::LODDecimatorProxy [protected]

Definition at line 73 of file vtkSMLODDisplayProxy.h.

vtkSMProxy* vtkSMLODDisplayProxy::LODUpdateSuppressorProxy [protected]

Definition at line 74 of file vtkSMLODDisplayProxy.h.

vtkSMProxy* vtkSMLODDisplayProxy::LODMapperProxy [protected]

Definition at line 75 of file vtkSMLODDisplayProxy.h.

int vtkSMLODDisplayProxy::LODResolution [protected]

Definition at line 77 of file vtkSMLODDisplayProxy.h.

int vtkSMLODDisplayProxy::LODGeometryIsValid [protected]

Definition at line 78 of file vtkSMLODDisplayProxy.h.

int vtkSMLODDisplayProxy::LODInformationIsValid [protected]

Definition at line 79 of file vtkSMLODDisplayProxy.h.

vtkPVLODPartDisplayInformation* vtkSMLODDisplayProxy::LODInformation [protected]

Definition at line 80 of file vtkSMLODDisplayProxy.h.

---

The documentation for this class was generated from the following file:

• Servers/ServerManager/vtkSMLODDisplayProxy.h

---
