vtkSMIceTRenderModuleProxy Class Reference

Multi Display using IceT. This can be used with or without tiles. When using without tiles. More...

#include <vtkSMIceTRenderModuleProxy.h>

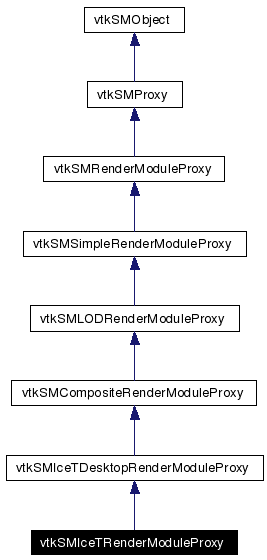

Inheritance diagram for vtkSMIceTRenderModuleProxy:

[legend]Collaboration diagram for vtkSMIceTRenderModuleProxy:

[legend]List of all members.

Public Member Functions
	vtkTypeRevisionMacro (vtkSMIceTRenderModuleProxy, vtkSMIceTDesktopRenderModuleProxy)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual int	IsRenderLocal ()
virtual void	SetCollectGeometryThreshold (double)
virtual double	GetCollectGeometryThreshold ()
virtual void	SetStillReductionFactor (int)
virtual int	GetStillReductionFactor ()
Static Public Member Functions
vtkSMIceTRenderModuleProxy *	New ()
Protected Member Functions
	vtkSMIceTRenderModuleProxy ()
	~vtkSMIceTRenderModuleProxy ()
virtual void	InitializeCompositingPipeline ()
virtual int	GetLocalRenderDecision (unsigned long totalMemory, int stillRender)
virtual void	InteractiveRender ()
virtual void	StillRender ()
virtual void	BeginInteractiveRender ()
virtual void	EndInteractiveRender ()
int	GetSuppressGeometryCollectionDecision ()
void	ChooseSuppressGeometryCollection ()
virtual void	BeginStillRender ()
virtual void	EndStillRender ()
Protected Attributes
double	CollectGeometryThreshold
int	StillReductionFactor

---

Detailed Description

Multi Display using IceT. This can be used with or without tiles. When using without tiles.

Definition at line 26 of file vtkSMIceTRenderModuleProxy.h.

---

Constructor & Destructor Documentation

vtkSMIceTRenderModuleProxy::vtkSMIceTRenderModuleProxy (   )  [protected]

vtkSMIceTRenderModuleProxy::~vtkSMIceTRenderModuleProxy (   )  [protected]

---

Member Function Documentation

vtkSMIceTRenderModuleProxy* vtkSMIceTRenderModuleProxy::New (   )  [static]

Reimplemented from vtkSMIceTDesktopRenderModuleProxy.

vtkSMIceTRenderModuleProxy::vtkTypeRevisionMacro (  vtkSMIceTRenderModuleProxy  , vtkSMIceTDesktopRenderModuleProxy  )

void vtkSMIceTRenderModuleProxy::PrintSelf (  ostream &  os, vtkIndent  indent )

Reimplemented from vtkSMIceTDesktopRenderModuleProxy.

virtual void vtkSMIceTRenderModuleProxy::SetCollectGeometryThreshold (  double   )  [virtual]

Select the threshold at which any geometry is collected on the client.

virtual double vtkSMIceTRenderModuleProxy::GetCollectGeometryThreshold (   )  [virtual]

Select the threshold at which any geometry is collected on the client.

virtual int vtkSMIceTRenderModuleProxy::IsRenderLocal (   )  [inline, virtual]

Indicates if we should locally render. Reimplemented from vtkSMCompositeRenderModuleProxy. Definition at line 41 of file vtkSMIceTRenderModuleProxy.h.

virtual void vtkSMIceTRenderModuleProxy::SetStillReductionFactor (  int   )  [virtual]

Set this flag to indicate whether to calculate the reduction factor for use in tree composite (or client server) when still rendering.

virtual int vtkSMIceTRenderModuleProxy::GetStillReductionFactor (   )  [virtual]

Set this flag to indicate whether to calculate the reduction factor for use in tree composite (or client server) when still rendering.

virtual void vtkSMIceTRenderModuleProxy::InitializeCompositingPipeline (   )  [protected, virtual]

Subclasses should override this method to intialize the Composite Manager. This is called after CreateVTKObjects(); Reimplemented from vtkSMIceTDesktopRenderModuleProxy.

virtual int vtkSMIceTRenderModuleProxy::GetLocalRenderDecision (  unsigned long  totalMemory, int  stillRender )  [protected, virtual]

Reimplemented from vtkSMCompositeRenderModuleProxy.

virtual void vtkSMIceTRenderModuleProxy::InteractiveRender (   )  [protected, virtual]

Render based on the interactive render parameters. This usually means LOD size, LOD geometry. Reimplemented from vtkSMCompositeRenderModuleProxy.

virtual void vtkSMIceTRenderModuleProxy::StillRender (   )  [protected, virtual]

Render based on the still render parameters. This usually means full size, full geometry. Reimplemented from vtkSMIceTDesktopRenderModuleProxy.

virtual void vtkSMIceTRenderModuleProxy::BeginStillRender (   )  [protected, virtual]

Method called before/after Still Render is called. Can be used to set GlobalLODFlag. Reimplemented from vtkSMRenderModuleProxy.

virtual void vtkSMIceTRenderModuleProxy::EndStillRender (   )  [protected, virtual]

Method called before/after Still Render is called. Can be used to set GlobalLODFlag. Reimplemented from vtkSMRenderModuleProxy.

virtual void vtkSMIceTRenderModuleProxy::BeginInteractiveRender (   )  [protected, virtual]

Reimplemented from vtkSMRenderModuleProxy.

virtual void vtkSMIceTRenderModuleProxy::EndInteractiveRender (   )  [protected, virtual]

Reimplemented from vtkSMRenderModuleProxy.

int vtkSMIceTRenderModuleProxy::GetSuppressGeometryCollectionDecision (   )  [protected]

Indicates if geometry should be collected on the client. If the data is really big, sometimes even a decimated version of it does not fit on the client well.

void vtkSMIceTRenderModuleProxy::ChooseSuppressGeometryCollection (   )  [protected]

Convenience method for synchronizing the SuppressGeometryCollection flag on all the display proxies.

---

Member Data Documentation

double vtkSMIceTRenderModuleProxy::CollectGeometryThreshold [protected]

Definition at line 54 of file vtkSMIceTRenderModuleProxy.h.

int vtkSMIceTRenderModuleProxy::StillReductionFactor [protected]

Definition at line 55 of file vtkSMIceTRenderModuleProxy.h.

---

The documentation for this class was generated from the following file:

• Servers/ServerManager/vtkSMIceTRenderModuleProxy.h

---
