vtkPVGroupInputsWidget Class Reference

Widget for vtkGroup filter. More...

#include <vtkPVGroupInputsWidget.h>

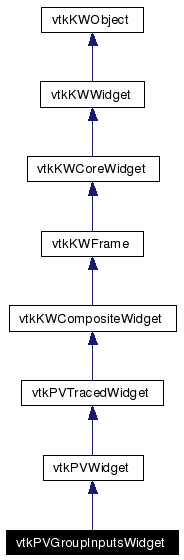

Inheritance diagram for vtkPVGroupInputsWidget:

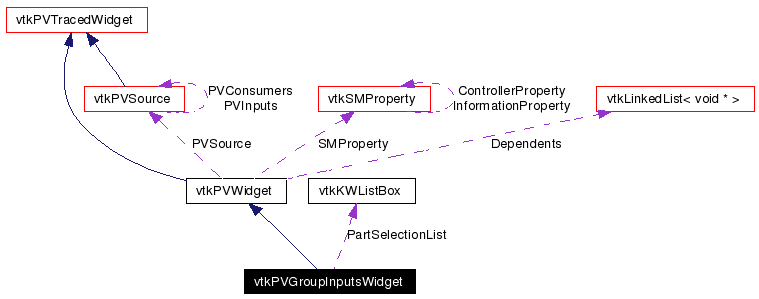

[legend]Collaboration diagram for vtkPVGroupInputsWidget:

[legend]List of all members.

Public Member Functions
	vtkTypeRevisionMacro (vtkPVGroupInputsWidget, vtkPVWidget)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Create (vtkKWApplication *app)
void	SaveInBatchScript (ofstream *file)
virtual void	ResetInternal ()
virtual void	Initialize ()
virtual void	Trace (ofstream *file)
void	SetSelectState (vtkPVSource *input, int val)
virtual void	Accept ()
void	AllOnCallback ()
void	AllOffCallback ()
Static Public Member Functions
vtkPVGroupInputsWidget *	New ()
Protected Member Functions
	vtkPVGroupInputsWidget ()
	~vtkPVGroupInputsWidget ()
void	Inactivate ()
vtkSMInputProperty *	GetInputProperty ()
int	CheckSource (vtkPVSource *pvs)
	vtkPVGroupInputsWidget (const vtkPVGroupInputsWidget &)
void	operator= (const vtkPVGroupInputsWidget &)
Protected Attributes
vtkPVSourceVectorInternals *	Internal
vtkKWListBox *	PartSelectionList
vtkCollection *	PartLabelCollection

---

Detailed Description

Widget for vtkGroup filter.

This widget lets the user select multiple inputs for the vtkGroup filter. After accept is called, the widget is disabled. This is necessary because we cannot allow the number of outputs or output types to change after the outputs have been created.

Definition at line 37 of file vtkPVGroupInputsWidget.h.

---

Constructor & Destructor Documentation

vtkPVGroupInputsWidget::vtkPVGroupInputsWidget (   )  [protected]

vtkPVGroupInputsWidget::~vtkPVGroupInputsWidget (   )  [protected]

vtkPVGroupInputsWidget::vtkPVGroupInputsWidget (  const vtkPVGroupInputsWidget &   )  [protected]

---

Member Function Documentation

vtkPVGroupInputsWidget* vtkPVGroupInputsWidget::New (   )  [static]

Reimplemented from vtkPVTracedWidget.

vtkPVGroupInputsWidget::vtkTypeRevisionMacro (  vtkPVGroupInputsWidget  , vtkPVWidget  )

void vtkPVGroupInputsWidget::PrintSelf (  ostream &  os, vtkIndent  indent )

Reimplemented from vtkPVWidget.

void vtkPVGroupInputsWidget::Create (  vtkKWApplication *  app  )  [virtual]

Create the widget. Reimplemented from vtkPVWidget.

void vtkPVGroupInputsWidget::SaveInBatchScript (  ofstream *  file  )  [virtual]

Save this source to a file. Reimplemented from vtkPVWidget.

virtual void vtkPVGroupInputsWidget::Accept (   )  [virtual]

Called when the Accept button is pressed. It moves the widget values to the VTK filter. Implements vtkPVWidget.

virtual void vtkPVGroupInputsWidget::ResetInternal (   )  [virtual]

This method resets the widget values from the VTK filter. Reimplemented from vtkPVWidget.

virtual void vtkPVGroupInputsWidget::Initialize (   )  [virtual]

Called after widget creation, sets the initial state of the widget. Implements vtkPVWidget.

virtual void vtkPVGroupInputsWidget::Trace (  ofstream *  file  )  [virtual]

This serves a dual purpose. For tracing and for saving state. Implements vtkPVWidget.

void vtkPVGroupInputsWidget::SetSelectState (  vtkPVSource *  input, int  val )

Access metod necessary for scripting.

void vtkPVGroupInputsWidget::AllOnCallback (   )

No buttons yet, just used for tracing.

void vtkPVGroupInputsWidget::AllOffCallback (   )

No buttons yet, just used for tracing.

void vtkPVGroupInputsWidget::Inactivate (   )  [protected]

vtkSMInputProperty* vtkPVGroupInputsWidget::GetInputProperty (   )  [protected]

int vtkPVGroupInputsWidget::CheckSource (  vtkPVSource *  pvs  )  [protected]

void vtkPVGroupInputsWidget::operator= (  const vtkPVGroupInputsWidget &   )  [protected]

---

Member Data Documentation

vtkPVSourceVectorInternals* vtkPVGroupInputsWidget::Internal [protected]

Definition at line 81 of file vtkPVGroupInputsWidget.h.

vtkKWListBox* vtkPVGroupInputsWidget::PartSelectionList [protected]

Definition at line 83 of file vtkPVGroupInputsWidget.h.

vtkCollection* vtkPVGroupInputsWidget::PartLabelCollection [protected]

Definition at line 85 of file vtkPVGroupInputsWidget.h.

---

The documentation for this class was generated from the following file:

• GUI/Client/vtkPVGroupInputsWidget.h

---
