vtkPVFieldMenu Class Reference

A menu to select point or cell fields. More...

#include <vtkPVFieldMenu.h>

Inheritance diagram for vtkPVFieldMenu:

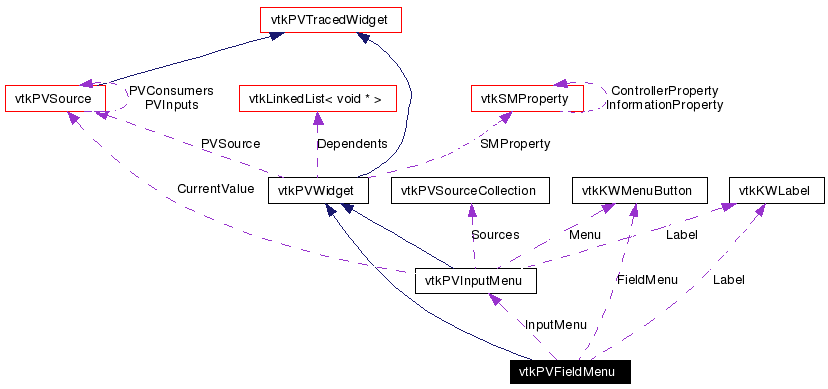

[legend]Collaboration diagram for vtkPVFieldMenu:

[legend]List of all members.

Public Member Functions
	vtkTypeRevisionMacro (vtkPVFieldMenu, vtkPVWidget)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Create (vtkKWApplication *app)
virtual void	Update ()
virtual void	Trace (ofstream *file)
virtual void	UpdateEnableState ()
virtual void	SetInputMenu (vtkPVInputMenu *)
virtual vtkPVInputMenu *	GetInputMenu ()
void	SetValue (int field)
virtual int	GetValue ()
vtkPVDataSetAttributesInformation *	GetFieldInformation ()
virtual vtkPVFieldMenu *	ClonePrototype (vtkPVSource *pvSource, vtkArrayMap< vtkPVWidget *, vtkPVWidget * > *map)
virtual void	Accept ()
virtual void	ResetInternal ()
virtual void	Initialize ()
Static Public Member Functions
vtkPVFieldMenu *	New ()
Protected Member Functions
	vtkPVFieldMenu ()
	~vtkPVFieldMenu ()
int	ReadXMLAttributes (vtkPVXMLElement *element, vtkPVXMLPackageParser *parser)
void	UpdateProperty ()
vtkPVInputProperty *	GetInputProperty ()
virtual vtkPVWidget *	ClonePrototypeInternal (vtkPVSource *pvSource, vtkArrayMap< vtkPVWidget *, vtkPVWidget * > *map)
virtual void	CopyProperties (vtkPVWidget *clone, vtkPVSource *pvSource, vtkArrayMap< vtkPVWidget *, vtkPVWidget * > *map)
	vtkPVFieldMenu (const vtkPVFieldMenu &)
void	operator= (const vtkPVFieldMenu &)
Protected Attributes
vtkKWLabel *	Label
vtkKWMenuButton *	FieldMenu
vtkPVInputMenu *	InputMenu
int	Value

---

Detailed Description

A menu to select point or cell fields.

This menu works with vtkPVInputMenu and vtkPVArrayMenu. It was developed for the Threshold filter which can threshold based on a cell or point array. Input menu supplies the DataSet information of the current input. It also calls update when the value of the input menu changes. The array menu can use this field menu as a source of its arrays.

Definition at line 39 of file vtkPVFieldMenu.h.

---

Constructor & Destructor Documentation

vtkPVFieldMenu::vtkPVFieldMenu (   )  [protected]

vtkPVFieldMenu::~vtkPVFieldMenu (   )  [protected]

vtkPVFieldMenu::vtkPVFieldMenu (  const vtkPVFieldMenu &   )  [protected]

---

Member Function Documentation

vtkPVFieldMenu* vtkPVFieldMenu::New (   )  [static]

Reimplemented from vtkPVTracedWidget.

vtkPVFieldMenu::vtkTypeRevisionMacro (  vtkPVFieldMenu  , vtkPVWidget  )

void vtkPVFieldMenu::PrintSelf (  ostream &  os, vtkIndent  indent )

Reimplemented from vtkPVWidget.

virtual void vtkPVFieldMenu::Create (  vtkKWApplication *  app  )  [virtual]

Create the widget. Reimplemented from vtkPVWidget.

virtual void vtkPVFieldMenu::SetInputMenu (  vtkPVInputMenu *   )  [virtual]

This input menu supplies the data information. You must set this (XML).

virtual vtkPVInputMenu* vtkPVFieldMenu::GetInputMenu (   )  [virtual]

This input menu supplies the data information. You must set this (XML).

void vtkPVFieldMenu::SetValue (  int  field  )

Set the menus value as a string. Used by the Accept and Reset callbacks. Can also be used from a script.

virtual int vtkPVFieldMenu::GetValue (   )  [virtual]

Set the menus value as a string. Used by the Accept and Reset callbacks. Can also be used from a script.

vtkPVDataSetAttributesInformation* vtkPVFieldMenu::GetFieldInformation (   )

A convenience method that returns information of the data attribute selected.

virtual void vtkPVFieldMenu::Update (   )  [virtual]

This is called to update the menus if something (InputMenu) changes. Reimplemented from vtkPVWidget.

virtual vtkPVFieldMenu* vtkPVFieldMenu::ClonePrototype (  vtkPVSource *  pvSource, vtkArrayMap< vtkPVWidget *, vtkPVWidget * > *  map )  [virtual]

Creates and returns a copy of this widget. It will create a new instance of the same type as the current object using NewInstance() and then copy some necessary state parameters. Reimplemented from vtkPVWidget.

virtual void vtkPVFieldMenu::Trace (  ofstream *  file  )  [virtual]

This serves a dual purpose. For tracing and for saving state. Implements vtkPVWidget.

virtual void vtkPVFieldMenu::Accept (   )  [virtual]

Called when the accept or reset button is pressed. Implements vtkPVWidget.

virtual void vtkPVFieldMenu::ResetInternal (   )  [virtual]

Called when the accept or reset button is pressed. Reimplemented from vtkPVWidget.

virtual void vtkPVFieldMenu::Initialize (   )  [virtual]

Called after the widget is created. Initializes the gui from server manager Implements vtkPVWidget.

virtual void vtkPVFieldMenu::UpdateEnableState (   )  [virtual]

Update the "enable" state of the object and its internal parts. Depending on different Ivars (this->Enabled, the application's Limited Edition Mode, etc.), the "enable" state of the object is updated and propagated to its internal parts/subwidgets. This will, for example, enable/disable parts of the widget UI, enable/disable the visibility of 3D widgets, etc. Reimplemented from vtkKWWidget.

int vtkPVFieldMenu::ReadXMLAttributes (  vtkPVXMLElement *  element, vtkPVXMLPackageParser *  parser )  [protected, virtual]

Called by vtkPVXMLPackageParser to configure the widget from XML attributes. Reimplemented from vtkPVWidget.

void vtkPVFieldMenu::UpdateProperty (   )  [protected]

vtkPVInputProperty* vtkPVFieldMenu::GetInputProperty (   )  [protected]

The property filters the allowable values of this menu..

virtual vtkPVWidget* vtkPVFieldMenu::ClonePrototypeInternal (  vtkPVSource *  pvSource, vtkArrayMap< vtkPVWidget *, vtkPVWidget * > *  map )  [protected, virtual]

Reimplemented from vtkPVWidget.

virtual void vtkPVFieldMenu::CopyProperties (  vtkPVWidget *  clone, vtkPVSource *  pvSource, vtkArrayMap< vtkPVWidget *, vtkPVWidget * > *  map )  [protected, virtual]

Reimplemented from vtkPVWidget.

void vtkPVFieldMenu::operator= (  const vtkPVFieldMenu &   )  [protected]

---

Member Data Documentation

vtkKWLabel* vtkPVFieldMenu::Label [protected]

Definition at line 116 of file vtkPVFieldMenu.h.

vtkKWMenuButton* vtkPVFieldMenu::FieldMenu [protected]

Definition at line 117 of file vtkPVFieldMenu.h.

vtkPVInputMenu* vtkPVFieldMenu::InputMenu [protected]

Definition at line 118 of file vtkPVFieldMenu.h.

int vtkPVFieldMenu::Value [protected]

Definition at line 125 of file vtkPVFieldMenu.h.

---

The documentation for this class was generated from the following file:

• GUI/Client/vtkPVFieldMenu.h

---
