vtkKWLabelWithLabel Class Reference

a vtkKWLabel associated to a vtkKWLabel More...

#include <vtkKWLabelWithLabel.h>

Inheritance diagram for vtkKWLabelWithLabel:

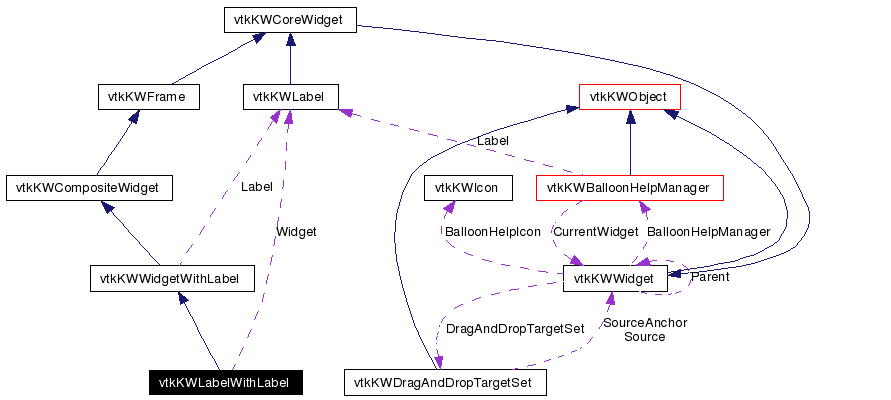

[legend]Collaboration diagram for vtkKWLabelWithLabel:

[legend]List of all members.

Public Member Functions
	vtkTypeRevisionMacro (vtkKWLabelWithLabel, vtkKWWidgetWithLabel)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Create (vtkKWApplication *app)
virtual vtkKWLabel *	GetWidget ()
virtual void	SetBalloonHelpString (const char *str)
virtual void	UpdateEnableState ()
virtual void	SetExpandWidget (int)
virtual void	ExpandWidgetOn ()
virtual void	ExpandWidgetOff ()
virtual int	GetExpandWidget ()
Static Public Member Functions
vtkKWLabelWithLabel *	New ()
Protected Member Functions
	vtkKWLabelWithLabel ()
	~vtkKWLabelWithLabel ()
virtual void	Pack ()
Protected Attributes
int	ExpandWidget
vtkKWLabel *	Widget

---

Detailed Description

a vtkKWLabel associated to a vtkKWLabel

This class creates a composite widget associating a vtkKWLabel to a vtkKWLabel. As a subclass of vtkKWWidgetWithLabel, it inherits a label and methods to set its position and visibility. Note that the default label position implemented in this class is on the left of the vtkKWLabel, but specific positions listed in vtkKWWidgetWithLabel are supported as well.

See also:

vtkKWWidgetWithLabel vtkKWLabel

Definition at line 35 of file vtkKWLabelWithLabel.h.

---

Constructor & Destructor Documentation

vtkKWLabelWithLabel::vtkKWLabelWithLabel (   )  [protected]

vtkKWLabelWithLabel::~vtkKWLabelWithLabel (   )  [protected]

---

Member Function Documentation

vtkKWLabelWithLabel* vtkKWLabelWithLabel::New (   )  [static]

Reimplemented from vtkKWWidgetWithLabel.

vtkKWLabelWithLabel::vtkTypeRevisionMacro (  vtkKWLabelWithLabel  , vtkKWWidgetWithLabel  )

void vtkKWLabelWithLabel::PrintSelf (  ostream &  os, vtkIndent  indent )

Reimplemented from vtkKWWidgetWithLabel.

virtual void vtkKWLabelWithLabel::Create (  vtkKWApplication *  app  )  [virtual]

Create the widget Reimplemented from vtkKWWidgetWithLabel.

virtual vtkKWLabel* vtkKWLabelWithLabel::GetWidget (   )  [virtual]

Get the vtkKWLabel that is being labeled

virtual void vtkKWLabelWithLabel::SetExpandWidget (  int   )  [virtual]

Set the layout to allow the widget that is labeled to expand horizontally automatically

virtual void vtkKWLabelWithLabel::ExpandWidgetOn (   )  [virtual]

Set the layout to allow the widget that is labeled to expand horizontally automatically

virtual void vtkKWLabelWithLabel::ExpandWidgetOff (   )  [virtual]

Set the layout to allow the widget that is labeled to expand horizontally automatically

virtual int vtkKWLabelWithLabel::GetExpandWidget (   )  [virtual]

Set the layout to allow the widget that is labeled to expand horizontally automatically

virtual void vtkKWLabelWithLabel::SetBalloonHelpString (  const char *  str  )  [virtual]

Set the string that enables balloon help for this widget. Override to pass down to children. Reimplemented from vtkKWWidgetWithLabel.

virtual void vtkKWLabelWithLabel::UpdateEnableState (   )  [virtual]

Update the "enable" state of the object and its internal parts. Depending on different Ivars (this->Enabled, the application's Limited Edition Mode, etc.), the "enable" state of the object is updated and propagated to its internal parts/subwidgets. This will, for example, enable/disable parts of the widget UI, enable/disable the visibility of 3D widgets, etc. Reimplemented from vtkKWWidgetWithLabel.

virtual void vtkKWLabelWithLabel::Pack (   )  [protected, virtual]

Pack or repack the widget. To be implemented by subclasses. Reimplemented from vtkKWWidgetWithLabel.

---

Member Data Documentation

int vtkKWLabelWithLabel::ExpandWidget [protected]

Expand the widget that is being labeled Definition at line 73 of file vtkKWLabelWithLabel.h.

vtkKWLabel* vtkKWLabelWithLabel::Widget [protected]

Internal widget Definition at line 79 of file vtkKWLabelWithLabel.h.

---

The documentation for this class was generated from the following file:

• GUI/Widgets/Templates/vtkKWLabelWithLabel.h

---
