itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData Struct Reference

#include <itkParallelSparseFieldLevelSetImageFilter.h>

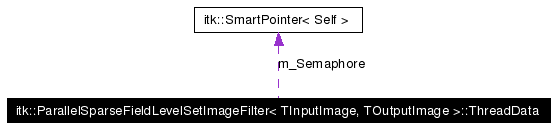

Collaboration diagram for itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData:

[legend]List of all members.

Public Attributes
char	pad1 [128]
TimeStepType	TimeStep
ThreadRegionType	ThreadRegion
ValueType	m_RMSChange
unsigned int	m_Count
LayerListType	m_Layers
LayerListType *	m_LoadTransferBufferLayers
LayerNodeStorageType::Pointer	m_LayerNodeStore
LayerPointerType	UpList [2]
LayerPointerType	DownList [2]
LayerPointerType **	m_InterNeighborNodeTransferBufferLayers [2]
void *	globalData
int *	m_ZHistogram
Semaphore::Pointer	m_Semaphore [2]
unsigned int	m_SemaphoreArrayNumber
char	pad2 [128]

---

Detailed Description

template<class TInputImage, class TOutputImage>
struct itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData

Local data for each individual thread.

Definition at line 675 of file itkParallelSparseFieldLevelSetImageFilter.h.

---

Member Data Documentation

template<class TInputImage, class TOutputImage> LayerPointerType itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData::DownList[2]

Definition at line 694 of file itkParallelSparseFieldLevelSetImageFilter.h.

template<class TInputImage, class TOutputImage> void* itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData::globalData

A pointer to the GlobalData struct obtained from the difference function. Every thread has its own copy of the struct Definition at line 702 of file itkParallelSparseFieldLevelSetImageFilter.h.

template<class TInputImage, class TOutputImage> unsigned int itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData::m_Count

Definition at line 682 of file itkParallelSparseFieldLevelSetImageFilter.h.

template<class TInputImage, class TOutputImage> LayerPointerType** itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData::m_InterNeighborNodeTransferBufferLayers[2]

Used to transfer data between UpList and DownList across thread boundaries Definition at line 698 of file itkParallelSparseFieldLevelSetImageFilter.h.

template<class TInputImage, class TOutputImage> LayerNodeStorageType::Pointer itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData::m_LayerNodeStore

Node memory pool Definition at line 691 of file itkParallelSparseFieldLevelSetImageFilter.h.

template<class TInputImage, class TOutputImage> LayerListType itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData::m_Layers

The layers Definition at line 685 of file itkParallelSparseFieldLevelSetImageFilter.h.

template<class TInputImage, class TOutputImage> LayerListType* itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData::m_LoadTransferBufferLayers

Used to transfer data between m_Layers during load balancing Definition at line 688 of file itkParallelSparseFieldLevelSetImageFilter.h.

template<class TInputImage, class TOutputImage> ValueType itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData::m_RMSChange

Definition at line 681 of file itkParallelSparseFieldLevelSetImageFilter.h.

template<class TInputImage, class TOutputImage> Semaphore::Pointer itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData::m_Semaphore[2]

Semaphores used for signalling and waiting neighbor threads. Strictly speaking the semaphores are NOT just accessed by the thread that owns them BUT also by the thread's neighbors. So they are NOT truly "local" data. Definition at line 710 of file itkParallelSparseFieldLevelSetImageFilter.h.

template<class TInputImage, class TOutputImage> unsigned int itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData::m_SemaphoreArrayNumber

Indicates whether to use m_Semaphore[0] or m_Semaphore[1] for signalling/waiting Definition at line 713 of file itkParallelSparseFieldLevelSetImageFilter.h.

template<class TInputImage, class TOutputImage> int* itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData::m_ZHistogram

Local histogram with each thread Definition at line 705 of file itkParallelSparseFieldLevelSetImageFilter.h.

template<class TInputImage, class TOutputImage> char itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData::pad1[128]

Definition at line 677 of file itkParallelSparseFieldLevelSetImageFilter.h.

template<class TInputImage, class TOutputImage> char itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData::pad2[128]

Definition at line 715 of file itkParallelSparseFieldLevelSetImageFilter.h.

template<class TInputImage, class TOutputImage> ThreadRegionType itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData::ThreadRegion

Definition at line 680 of file itkParallelSparseFieldLevelSetImageFilter.h.

template<class TInputImage, class TOutputImage> TimeStepType itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData::TimeStep

Definition at line 679 of file itkParallelSparseFieldLevelSetImageFilter.h.

template<class TInputImage, class TOutputImage> LayerPointerType itk::ParallelSparseFieldLevelSetImageFilter< TInputImage, TOutputImage >::ThreadData::UpList[2]

Definition at line 693 of file itkParallelSparseFieldLevelSetImageFilter.h.

---

The documentation for this struct was generated from the following file:

• itkParallelSparseFieldLevelSetImageFilter.h

---
