itk::VectorResampleImageFilter< TInputImage, TOutputImage > Class Template Reference
[Geometric Transformation Filters]

Resample an image via a coordinate transform. More...

#include <itkVectorResampleImageFilter.h>

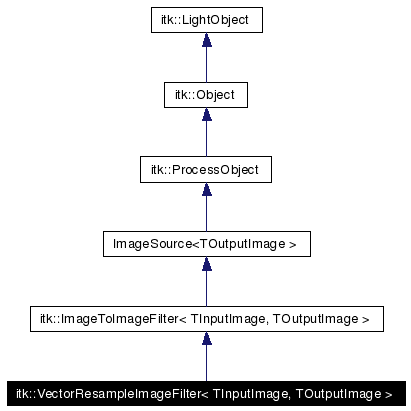

Inheritance diagram for itk::VectorResampleImageFilter< TInputImage, TOutputImage >:

Inheritance graph
[legend]

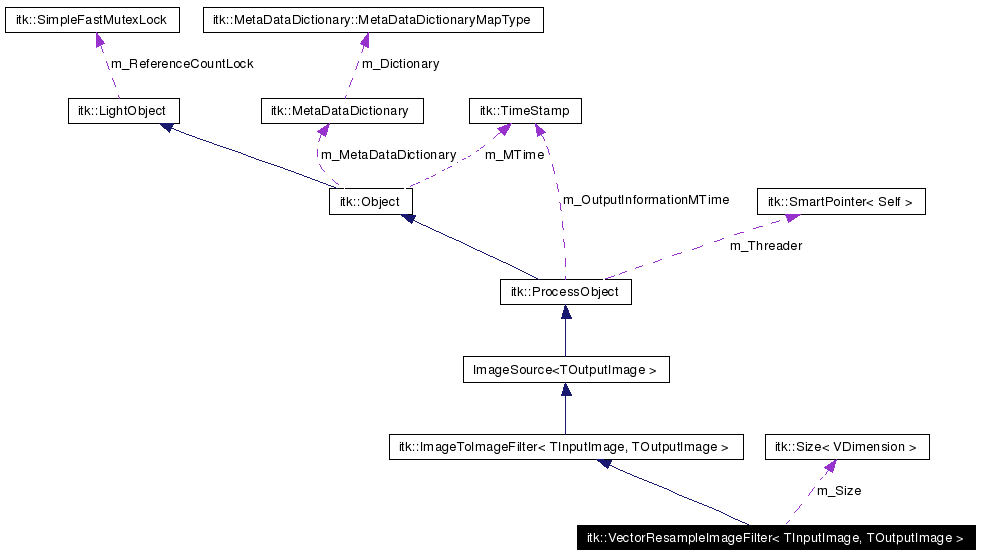

Collaboration diagram for itk::VectorResampleImageFilter< TInputImage, TOutputImage >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef VectorResampleImageFilter Self
typedef ImageToImageFilter<
TInputImage, TOutputImage >
Superclass
typedef SmartPointer< SelfPointer
typedef SmartPointer< const
Self
ConstPointer
typedef TInputImage InputImageType
typedef TOutputImage OutputImageType
typedef InputImageType::Pointer InputImagePointer
typedef OutputImageType::Pointer OutputImagePointer
typedef InputImageType::RegionType InputImageRegionType
typedef Transform< double,
itkGetStaticConstMacro(ImageDimension),
itkGetStaticConstMacro(ImageDimension)
TransformType )
typedef TransformType::Pointer TransformPointerType
typedef VectorInterpolateImageFunction<
InputImageType, double >
InterpolatorType
typedef InterpolatorType::Pointer InterpolatorPointerType
typedef Size< itkGetStaticConstMacro(ImageDimension) SizeType )
typedef TOutputImage::IndexType IndexType
typedef InterpolatorType::PointType PointType
typedef TOutputImage::PixelType PixelType
typedef PixelType::ValueType PixelComponentType
typedef TOutputImage::RegionType OutputImageRegionType
typedef TOutputImage::SpacingType SpacingType
typedef TOutputImage::PointType OriginPointType

Public Member Functions

virtual const char * GetNameOfClass () const
 itkStaticConstMacro (ImageDimension, unsigned int, TOutputImage::ImageDimension)
virtual void SetTransform (TransformType *_arg)
virtual TransformTypeGetTransform ()
virtual void SetInterpolator (InterpolatorType *_arg)
virtual InterpolatorTypeGetInterpolator ()
virtual void SetSize (SizeType _arg)
virtual const SizeTypeGetSize ()
virtual void SetDefaultPixelValue (PixelType _arg)
virtual PixelType GetDefaultPixelValue ()
virtual const SpacingTypeGetOutputSpacing ()
virtual const PointTypeGetOutputOrigin ()
virtual void SetOutputStartIndex (IndexType _arg)
virtual const IndexTypeGetOutputStartIndex ()
virtual void GenerateOutputInformation ()
virtual void GenerateInputRequestedRegion ()
virtual void BeforeThreadedGenerateData ()
virtual void AfterThreadedGenerateData ()
unsigned long GetMTime (void) const
virtual void SetOutputSpacing (SpacingType _arg)
virtual void SetOutputSpacing (const double *values)
virtual void SetOutputOrigin (PointType _arg)
virtual void SetOutputOrigin (const double *values)

Static Public Member Functions

Pointer New ()

Protected Member Functions

 VectorResampleImageFilter ()
 ~VectorResampleImageFilter ()
void PrintSelf (std::ostream &os, Indent indent) const
void ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, int threadId)

Detailed Description

template<class TInputImage, class TOutputImage>
class itk::VectorResampleImageFilter< TInputImage, TOutputImage >

Resample an image via a coordinate transform.

VectorResampleImageFilter resamples an existing image through some coordinate transform, interpolating via some image function. The class is templated over the types of the input and output images.

Note that the choice of interpolator function can be important. This function is set via SetInterpolator(). The default is itk::VectorLinearInterpolateImageFunction<InputImageType, double>, which is reasonable for ordinary medical images.

Since this filter produces an image which is a different size than its input, it needs to override several of the methods defined in ProcessObject in order to properly manage the pipeline execution model. In particular, this filter overrides ProcessObject::GenerateInputRequestedRegion() and ProcessObject::GenerateOutputInformation().

This filter is implemented as a multithreaded filter. It provides a ThreadedGenerateData() method for its implementation.

Definition at line 56 of file itkVectorResampleImageFilter.h.


Member Typedef Documentation

template<class TInputImage, class TOutputImage>
typedef SmartPointer<const Self> itk::VectorResampleImageFilter< TInputImage, TOutputImage >::ConstPointer


Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

Definition at line 64 of file itkVectorResampleImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef TOutputImage::IndexType itk::VectorResampleImageFilter< TInputImage, TOutputImage >::IndexType


Image index typedef.

Definition at line 97 of file itkVectorResampleImageFilter.h.

Referenced by itk::VectorResampleImageFilter< TInputImage, TOutputImage >::~VectorResampleImageFilter().

template<class TInputImage, class TOutputImage>
typedef InputImageType::Pointer itk::VectorResampleImageFilter< TInputImage, TOutputImage >::InputImagePointer


Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

Definition at line 67 of file itkVectorResampleImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef InputImageType::RegionType itk::VectorResampleImageFilter< TInputImage, TOutputImage >::InputImageRegionType


Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

Definition at line 69 of file itkVectorResampleImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef TInputImage itk::VectorResampleImageFilter< TInputImage, TOutputImage >::InputImageType


Some convenient typedefs.

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

Definition at line 65 of file itkVectorResampleImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef InterpolatorType::Pointer itk::VectorResampleImageFilter< TInputImage, TOutputImage >::InterpolatorPointerType


Definition at line 91 of file itkVectorResampleImageFilter.h.

Referenced by itk::VectorResampleImageFilter< TInputImage, TOutputImage >::~VectorResampleImageFilter().

template<class TInputImage, class TOutputImage>
typedef VectorInterpolateImageFunction<InputImageType, double> itk::VectorResampleImageFilter< TInputImage, TOutputImage >::InterpolatorType


Interpolator typedef.

Definition at line 90 of file itkVectorResampleImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef TOutputImage::PointType itk::VectorResampleImageFilter< TInputImage, TOutputImage >::OriginPointType


Definition at line 111 of file itkVectorResampleImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef OutputImageType::Pointer itk::VectorResampleImageFilter< TInputImage, TOutputImage >::OutputImagePointer


Reimplemented from itk::ImageSource< TOutputImage >.

Definition at line 68 of file itkVectorResampleImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef TOutputImage::RegionType itk::VectorResampleImageFilter< TInputImage, TOutputImage >::OutputImageRegionType


Typedef to describe the output image region type.

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

Definition at line 107 of file itkVectorResampleImageFilter.h.

Referenced by itk::VectorResampleImageFilter< TInputImage, TOutputImage >::~VectorResampleImageFilter().

template<class TInputImage, class TOutputImage>
typedef TOutputImage itk::VectorResampleImageFilter< TInputImage, TOutputImage >::OutputImageType


Some convenient typedefs.

Reimplemented from itk::ImageSource< TOutputImage >.

Definition at line 66 of file itkVectorResampleImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef PixelType::ValueType itk::VectorResampleImageFilter< TInputImage, TOutputImage >::PixelComponentType


Definition at line 104 of file itkVectorResampleImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef TOutputImage::PixelType itk::VectorResampleImageFilter< TInputImage, TOutputImage >::PixelType


Image pixel value typedef.

Definition at line 103 of file itkVectorResampleImageFilter.h.

Referenced by itk::VectorResampleImageFilter< TInputImage, TOutputImage >::~VectorResampleImageFilter().

template<class TInputImage, class TOutputImage>
typedef SmartPointer<Self> itk::VectorResampleImageFilter< TInputImage, TOutputImage >::Pointer


Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

Definition at line 63 of file itkVectorResampleImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef InterpolatorType::PointType itk::VectorResampleImageFilter< TInputImage, TOutputImage >::PointType


Image point typedef.

Definition at line 100 of file itkVectorResampleImageFilter.h.

Referenced by itk::VectorResampleImageFilter< TInputImage, TOutputImage >::~VectorResampleImageFilter().

template<class TInputImage, class TOutputImage>
typedef VectorResampleImageFilter itk::VectorResampleImageFilter< TInputImage, TOutputImage >::Self


Standard class typedefs.

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

Definition at line 61 of file itkVectorResampleImageFilter.h.

Referenced by itk::VectorResampleImageFilter< TInputImage, TOutputImage >::~VectorResampleImageFilter().

template<class TInputImage, class TOutputImage>
typedef Size<itkGetStaticConstMacro(ImageDimension) itk::VectorResampleImageFilter< TInputImage, TOutputImage >::SizeType)


Image size typedef.

Definition at line 94 of file itkVectorResampleImageFilter.h.

Referenced by itk::VectorResampleImageFilter< TInputImage, TOutputImage >::~VectorResampleImageFilter().

template<class TInputImage, class TOutputImage>
typedef TOutputImage::SpacingType itk::VectorResampleImageFilter< TInputImage, TOutputImage >::SpacingType


Image spacing typedef

Definition at line 110 of file itkVectorResampleImageFilter.h.

Referenced by itk::VectorResampleImageFilter< TInputImage, TOutputImage >::~VectorResampleImageFilter().

template<class TInputImage, class TOutputImage>
typedef ImageToImageFilter<TInputImage,TOutputImage> itk::VectorResampleImageFilter< TInputImage, TOutputImage >::Superclass


Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

Definition at line 62 of file itkVectorResampleImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef TransformType::Pointer itk::VectorResampleImageFilter< TInputImage, TOutputImage >::TransformPointerType


Definition at line 87 of file itkVectorResampleImageFilter.h.

Referenced by itk::VectorResampleImageFilter< TInputImage, TOutputImage >::~VectorResampleImageFilter().

template<class TInputImage, class TOutputImage>
typedef Transform<double, itkGetStaticConstMacro(ImageDimension), itkGetStaticConstMacro(ImageDimension) itk::VectorResampleImageFilter< TInputImage, TOutputImage >::TransformType)


Transform typedef.

Todo:
Check that input and output images have the same number of dimensions; this is required by the current implementation of AffineTransform.

Definition at line 86 of file itkVectorResampleImageFilter.h.


Constructor & Destructor Documentation

template<class TInputImage, class TOutputImage>
itk::VectorResampleImageFilter< TInputImage, TOutputImage >::VectorResampleImageFilter  )  [protected]


template<class TInputImage, class TOutputImage>
itk::VectorResampleImageFilter< TInputImage, TOutputImage >::~VectorResampleImageFilter  )  [inline, protected]


Definition at line 193 of file itkVectorResampleImageFilter.h.

References itk::VectorResampleImageFilter< TInputImage, TOutputImage >::IndexType, itk::VectorResampleImageFilter< TInputImage, TOutputImage >::InterpolatorPointerType, itk::VectorResampleImageFilter< TInputImage, TOutputImage >::OutputImageRegionType, itk::VectorResampleImageFilter< TInputImage, TOutputImage >::PixelType, itk::VectorResampleImageFilter< TInputImage, TOutputImage >::PointType, itk::VectorResampleImageFilter< TInputImage, TOutputImage >::Self, itk::VectorResampleImageFilter< TInputImage, TOutputImage >::SizeType, itk::VectorResampleImageFilter< TInputImage, TOutputImage >::SpacingType, and itk::VectorResampleImageFilter< TInputImage, TOutputImage >::TransformPointerType.


Member Function Documentation

template<class TInputImage, class TOutputImage>
virtual void itk::VectorResampleImageFilter< TInputImage, TOutputImage >::AfterThreadedGenerateData  )  [virtual]


This method is used to set the state of the filter after multi-threading.

Reimplemented from itk::ImageSource< TOutputImage >.

template<class TInputImage, class TOutputImage>
virtual void itk::VectorResampleImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData  )  [virtual]


This method is used to set the state of the filter before multi-threading.

Reimplemented from itk::ImageSource< TOutputImage >.

template<class TInputImage, class TOutputImage>
virtual void itk::VectorResampleImageFilter< TInputImage, TOutputImage >::GenerateInputRequestedRegion  )  [virtual]


VectorResampleImageFilter needs a different input requested region than the output requested region. As such, VectorResampleImageFilter needs to provide an implementation for GenerateInputRequestedRegion() in order to inform the pipeline execution model.

See also:
ProcessObject::GenerateInputRequestedRegion()

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

template<class TInputImage, class TOutputImage>
virtual void itk::VectorResampleImageFilter< TInputImage, TOutputImage >::GenerateOutputInformation  )  [virtual]


VectorResampleImageFilter produces an image which is a different size than its input. As such, it needs to provide an implementation for GenerateOutputInformation() in order to inform the pipeline execution model. The original documentation of this method is below.

See also:
ProcessObject::GenerateOutputInformaton()

Reimplemented from itk::ProcessObject.

template<class TInputImage, class TOutputImage>
virtual PixelType itk::VectorResampleImageFilter< TInputImage, TOutputImage >::GetDefaultPixelValue  )  [virtual]


Get the pixel value when a transformed pixel is outside of the image

template<class TInputImage, class TOutputImage>
virtual InterpolatorType* itk::VectorResampleImageFilter< TInputImage, TOutputImage >::GetInterpolator  )  [virtual]


Get a pointer to the interpolator function.

template<class TInputImage, class TOutputImage>
unsigned long itk::VectorResampleImageFilter< TInputImage, TOutputImage >::GetMTime void   )  const [virtual]


Method Compute the Modified Time based on changed to the components.

Reimplemented from itk::Object.

template<class TInputImage, class TOutputImage>
virtual const char* itk::VectorResampleImageFilter< TInputImage, TOutputImage >::GetNameOfClass  )  const [virtual]


Run-time type information (and related methods).

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

template<class TInputImage, class TOutputImage>
virtual const PointType& itk::VectorResampleImageFilter< TInputImage, TOutputImage >::GetOutputOrigin  )  [virtual]


Get the output image origin.

template<class TInputImage, class TOutputImage>
virtual const SpacingType& itk::VectorResampleImageFilter< TInputImage, TOutputImage >::GetOutputSpacing  )  [virtual]


Get the output image spacing.

template<class TInputImage, class TOutputImage>
virtual const IndexType& itk::VectorResampleImageFilter< TInputImage, TOutputImage >::GetOutputStartIndex  )  [virtual]


Get the start index of the output largest possible region.

template<class TInputImage, class TOutputImage>
virtual const SizeType& itk::VectorResampleImageFilter< TInputImage, TOutputImage >::GetSize  )  [virtual]


Get the size of the output image.

template<class TInputImage, class TOutputImage>
virtual TransformType* itk::VectorResampleImageFilter< TInputImage, TOutputImage >::GetTransform  )  [virtual]


Get a pointer to the coordinate transform.

template<class TInputImage, class TOutputImage>
itk::VectorResampleImageFilter< TInputImage, TOutputImage >::itkStaticConstMacro ImageDimension  ,
unsigned  int,
TOutputImage::ImageDimension


Number of dimensions.

template<class TInputImage, class TOutputImage>
Pointer itk::VectorResampleImageFilter< TInputImage, TOutputImage >::New  )  [static]


Method for creation through the object factory.

Reimplemented from itk::Object.

template<class TInputImage, class TOutputImage>
void itk::VectorResampleImageFilter< TInputImage, TOutputImage >::PrintSelf std::ostream &  os,
Indent  indent
const [protected, virtual]


Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

template<class TInputImage, class TOutputImage>
virtual void itk::VectorResampleImageFilter< TInputImage, TOutputImage >::SetDefaultPixelValue PixelType  _arg  )  [virtual]


Set the pixel value when a transformed pixel is outside of the image. The default default pixel value is 0.

template<class TInputImage, class TOutputImage>
virtual void itk::VectorResampleImageFilter< TInputImage, TOutputImage >::SetInterpolator InterpolatorType _arg  )  [virtual]


Set the interpolator function. The default is itk::VectorLinearInterpolateImageFunction<InputImageType, double>.

template<class TInputImage, class TOutputImage>
virtual void itk::VectorResampleImageFilter< TInputImage, TOutputImage >::SetOutputOrigin const double *  values  )  [virtual]


Set the output image origin.

template<class TInputImage, class TOutputImage>
virtual void itk::VectorResampleImageFilter< TInputImage, TOutputImage >::SetOutputOrigin PointType  _arg  )  [virtual]


Set the output image origin.

template<class TInputImage, class TOutputImage>
virtual void itk::VectorResampleImageFilter< TInputImage, TOutputImage >::SetOutputSpacing const double *  values  )  [virtual]


Set the output image spacing.

template<class TInputImage, class TOutputImage>
virtual void itk::VectorResampleImageFilter< TInputImage, TOutputImage >::SetOutputSpacing SpacingType  _arg  )  [virtual]


Set the output image spacing.

template<class TInputImage, class TOutputImage>
virtual void itk::VectorResampleImageFilter< TInputImage, TOutputImage >::SetOutputStartIndex IndexType  _arg  )  [virtual]


Set the start index of the output largest possible region. The default is an index of all zeros.

template<class TInputImage, class TOutputImage>
virtual void itk::VectorResampleImageFilter< TInputImage, TOutputImage >::SetSize SizeType  _arg  )  [virtual]


Set the size of the output image.

template<class TInputImage, class TOutputImage>
virtual void itk::VectorResampleImageFilter< TInputImage, TOutputImage >::SetTransform TransformType _arg  )  [virtual]


Set the coordinate transformation. Set the coordinate transform to use for resampling. Note that this must be in index coordinates and is the output-to-input transform, NOT the input-to-output transform that you might naively expect. The default is itk::AffineTransform<double, ImageDimension>.

template<class TInputImage, class TOutputImage>
void itk::VectorResampleImageFilter< TInputImage, TOutputImage >::ThreadedGenerateData const OutputImageRegionType outputRegionForThread,
int  threadId
[protected, virtual]


VectorResampleImageFilter can be implemented as a multithreaded filter. Therefore, this implementation provides a ThreadedGenerateData() routine which is called for each processing thread. The output image data is allocated automatically by the superclass prior to calling ThreadedGenerateData(). ThreadedGenerateData can only write to the portion of the output image specified by the parameter "outputRegionForThread"

See also:
ImageToImageFilter::ThreadedGenerateData(), ImageToImageFilter::GenerateData()

Reimplemented from itk::ImageSource< TOutputImage >.


The documentation for this class was generated from the following file:
Generated at Thu May 25 02:38:28 2006 for ITK by doxygen 1.3.5 written by Dimitri van Heesch, © 1997-2000
