itk::VectorExpandImageFilter< TInputImage, TOutputImage > Class Template Reference

Expand the size of a vector image by an integer factor in each dimension. More...

#include <itkVectorExpandImageFilter.h>

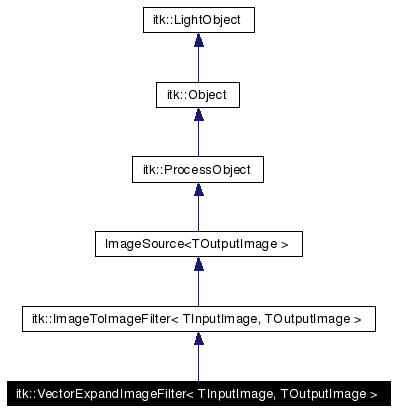

Inheritance diagram for itk::VectorExpandImageFilter< TInputImage, TOutputImage >:

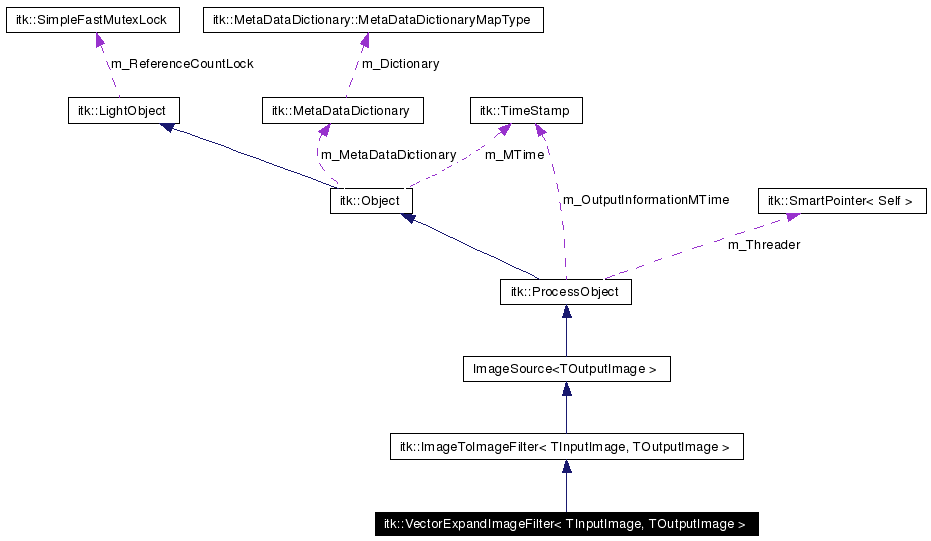

[legend]Collaboration diagram for itk::VectorExpandImageFilter< TInputImage, TOutputImage >:

[legend]List of all members.

Public Types
typedef VectorExpandImageFilter	Self
typedef ImageToImageFilter< TInputImage, TOutputImage >	Superclass
typedef SmartPointer< Self >	Pointer
typedef SmartPointer< const Self >	ConstPointer
typedef TInputImage::Pointer	InputImagePointer
typedef TOutputImage::Pointer	OutputImagePointer
typedef TOutputImage::RegionType	OutputImageRegionType
typedef Superclass::InputImageType	InputImageType
typedef Superclass::OutputImageType	OutputImageType
typedef OutputImageType::PixelType	OutputPixelType
typedef OutputPixelType::ValueType	OutputValueType
typedef InputImageType::PixelType	InputPixelType
typedef InputPixelType::ValueType	InputValueType
typedef float	ExpandFactorsType
typedef double	CoordRepType
typedef VectorInterpolateImageFunction< InputImageType, CoordRepType >	InterpolatorType
typedef InterpolatorType::Pointer	InterpolatorPointer
typedef VectorLinearInterpolateImageFunction< InputImageType, CoordRepType >	DefaultInterpolatorType
enum	{ VectorDimension = InputPixelType::Dimension }
Public Member Functions
virtual const char *	GetNameOfClass () const
	itkStaticConstMacro (ImageDimension, unsigned int, TInputImage::ImageDimension)
virtual void	SetInterpolator (InterpolatorType *_arg)
virtual InterpolatorType *	GetInterpolator ()
const ExpandFactorsType *	GetExpandFactors () const
virtual void	SetEdgePaddingValue (const OutputPixelType &value)
virtual const OutputPixelType &	GetEdgePaddingValue ()
virtual void	GenerateOutputInformation ()
virtual void	GenerateInputRequestedRegion ()
virtual void	SetExpandFactors (const ExpandFactorsType factors[])
virtual void	SetExpandFactors (const ExpandFactorsType factor)
virtual void	SetExpandFactors (const unsigned int factors[])
Static Public Member Functions
Pointer	New ()
Protected Member Functions
	VectorExpandImageFilter ()
	~VectorExpandImageFilter ()
void	PrintSelf (std::ostream &os, Indent indent) const
virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, int threadId)
virtual void	BeforeThreadedGenerateData ()

---

Detailed Description

template<class TInputImage, class TOutputImage>
class itk::VectorExpandImageFilter< TInputImage, TOutputImage >

Expand the size of a vector image by an integer factor in each dimension.

VectorExpandImageFilter increases the size of an image by an integer factor in each dimension using a interpolation method. The output image size in each dimension is given by:

OutputSize[j] = InputSize[j] * ExpandFactors[j]

The output values are obtained by interpolating the input image. The default interpolation type used is the VectorLinearInterpolateImageFunction. The user can specified a particular interpolation function via SetInterpolator(). Note that the input interpolator must derive from base class VectorInterpolateImageFunction.

When the LargestPossibleRegion is requested, the output image will contain padding at the upper edge of each dimension. The width of padding in the i'th dimension is (ExpandFactors[i] - 1). Users can specify the padding value used by setting the EdgePaddingValue.

This filter will produce an output with different pixel spacing that its input image such that:

OutputSpacing[j] = InputSpacing[j] / ExpandFactors[j]

The filter is templated over the input image type and the output image type.

This filter is implemented as a multithreaded filter and supports streaming.

Warning:

This filter only works for image with pixel types base on itk::Vectors. For scalar pixel images use ExpandImageFilter.

This filter assumes that the input and output image has the same number of dimensions, and that the input and output pixel types have the same vector dimension.

See also:

Vector

VectorInterpolateImageFunction

VectorLinearInterpolationImageFunction

ExpandImageFilter

Definition at line 80 of file itkVectorExpandImageFilter.h.

---

Member Typedef Documentation

template<class TInputImage, class TOutputImage> typedef SmartPointer<const Self> itk::VectorExpandImageFilter< TInputImage, TOutputImage >::ConstPointer

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >. Definition at line 88 of file itkVectorExpandImageFilter.h.

template<class TInputImage, class TOutputImage> typedef double itk::VectorExpandImageFilter< TInputImage, TOutputImage >::CoordRepType

Typedef support for the interpolation function Definition at line 122 of file itkVectorExpandImageFilter.h.

template<class TInputImage, class TOutputImage> typedef VectorLinearInterpolateImageFunction<InputImageType,CoordRepType> itk::VectorExpandImageFilter< TInputImage, TOutputImage >::DefaultInterpolatorType

Definition at line 127 of file itkVectorExpandImageFilter.h.

template<class TInputImage, class TOutputImage> typedef float itk::VectorExpandImageFilter< TInputImage, TOutputImage >::ExpandFactorsType

The type of the expand factors representation Definition at line 119 of file itkVectorExpandImageFilter.h. Referenced by itk::VectorExpandImageFilter< TInputImage, TOutputImage >::~VectorExpandImageFilter().

template<class TInputImage, class TOutputImage> typedef TInputImage::Pointer itk::VectorExpandImageFilter< TInputImage, TOutputImage >::InputImagePointer

Typedef to describe the output image region type. Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >. Definition at line 94 of file itkVectorExpandImageFilter.h.

template<class TInputImage, class TOutputImage> typedef Superclass::InputImageType itk::VectorExpandImageFilter< TInputImage, TOutputImage >::InputImageType

Inherit some types from superclass Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >. Definition at line 106 of file itkVectorExpandImageFilter.h.

template<class TInputImage, class TOutputImage> typedef InputImageType::PixelType itk::VectorExpandImageFilter< TInputImage, TOutputImage >::InputPixelType

Definition at line 112 of file itkVectorExpandImageFilter.h.

template<class TInputImage, class TOutputImage> typedef InputPixelType::ValueType itk::VectorExpandImageFilter< TInputImage, TOutputImage >::InputValueType

Definition at line 113 of file itkVectorExpandImageFilter.h.

template<class TInputImage, class TOutputImage> typedef InterpolatorType::Pointer itk::VectorExpandImageFilter< TInputImage, TOutputImage >::InterpolatorPointer

Definition at line 125 of file itkVectorExpandImageFilter.h. Referenced by itk::VectorExpandImageFilter< TInputImage, TOutputImage >::~VectorExpandImageFilter().

template<class TInputImage, class TOutputImage> typedef VectorInterpolateImageFunction<InputImageType,CoordRepType> itk::VectorExpandImageFilter< TInputImage, TOutputImage >::InterpolatorType

Definition at line 124 of file itkVectorExpandImageFilter.h.

template<class TInputImage, class TOutputImage> typedef TOutputImage::Pointer itk::VectorExpandImageFilter< TInputImage, TOutputImage >::OutputImagePointer

Reimplemented from itk::ImageSource< TOutputImage >. Definition at line 95 of file itkVectorExpandImageFilter.h.

template<class TInputImage, class TOutputImage> typedef TOutputImage::RegionType itk::VectorExpandImageFilter< TInputImage, TOutputImage >::OutputImageRegionType

Superclass typedefs. Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >. Definition at line 96 of file itkVectorExpandImageFilter.h. Referenced by itk::VectorExpandImageFilter< TInputImage, TOutputImage >::~VectorExpandImageFilter().

template<class TInputImage, class TOutputImage> typedef Superclass::OutputImageType itk::VectorExpandImageFilter< TInputImage, TOutputImage >::OutputImageType

Some convenient typedefs. Reimplemented from itk::ImageSource< TOutputImage >. Definition at line 107 of file itkVectorExpandImageFilter.h.

template<class TInputImage, class TOutputImage> typedef OutputImageType::PixelType itk::VectorExpandImageFilter< TInputImage, TOutputImage >::OutputPixelType

Input/output vector types. Definition at line 110 of file itkVectorExpandImageFilter.h. Referenced by itk::VectorExpandImageFilter< TInputImage, TOutputImage >::~VectorExpandImageFilter().

template<class TInputImage, class TOutputImage> typedef OutputPixelType::ValueType itk::VectorExpandImageFilter< TInputImage, TOutputImage >::OutputValueType

Definition at line 111 of file itkVectorExpandImageFilter.h.

template<class TInputImage, class TOutputImage> typedef SmartPointer<Self> itk::VectorExpandImageFilter< TInputImage, TOutputImage >::Pointer

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >. Definition at line 87 of file itkVectorExpandImageFilter.h.

template<class TInputImage, class TOutputImage> typedef VectorExpandImageFilter itk::VectorExpandImageFilter< TInputImage, TOutputImage >::Self

Standard class typedefs. Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >. Definition at line 85 of file itkVectorExpandImageFilter.h. Referenced by itk::VectorExpandImageFilter< TInputImage, TOutputImage >::~VectorExpandImageFilter().

template<class TInputImage, class TOutputImage> typedef ImageToImageFilter<TInputImage,TOutputImage> itk::VectorExpandImageFilter< TInputImage, TOutputImage >::Superclass

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >. Definition at line 86 of file itkVectorExpandImageFilter.h.

---

Member Enumeration Documentation

template<class TInputImage, class TOutputImage> anonymous enum

Determine the vector dimension. Enumeration values: VectorDimension  Definition at line 116 of file itkVectorExpandImageFilter.h.

---

Constructor & Destructor Documentation

template<class TInputImage, class TOutputImage> itk::VectorExpandImageFilter< TInputImage, TOutputImage >::VectorExpandImageFilter (   )  [protected]

template<class TInputImage, class TOutputImage> itk::VectorExpandImageFilter< TInputImage, TOutputImage >::~VectorExpandImageFilter (   )  [inline, protected]

Definition at line 171 of file itkVectorExpandImageFilter.h. References itk::VectorExpandImageFilter< TInputImage, TOutputImage >::ExpandFactorsType, itk::VectorExpandImageFilter< TInputImage, TOutputImage >::InterpolatorPointer, itk::VectorExpandImageFilter< TInputImage, TOutputImage >::OutputImageRegionType, itk::VectorExpandImageFilter< TInputImage, TOutputImage >::OutputPixelType, and itk::VectorExpandImageFilter< TInputImage, TOutputImage >::Self.

---

Member Function Documentation

template<class TInputImage, class TOutputImage> virtual void itk::VectorExpandImageFilter< TInputImage, TOutputImage >::BeforeThreadedGenerateData (   )  [protected, virtual]

This method is used to set the state of the filter before multi-threading. Reimplemented from itk::ImageSource< TOutputImage >.

template<class TInputImage, class TOutputImage> virtual void itk::VectorExpandImageFilter< TInputImage, TOutputImage >::GenerateInputRequestedRegion (   )  [virtual]

VectorExpandImageFilter needs a smaller input requested region than the output requested region. As such, ShrinkImageFilter needs to provide an implementation for GenerateInputRequestedRegion() in order to inform the pipeline execution model. See also: ProcessObject::GenerateInputRequestedRegion() Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

template<class TInputImage, class TOutputImage> virtual void itk::VectorExpandImageFilter< TInputImage, TOutputImage >::GenerateOutputInformation (   )  [virtual]

VectorExpandImageFilter produces an image which is a different resolution and with a different pixel spacing than its input image. As such, VectorExpandImageFilter needs to provide an implementation for UpdateOutputInformation() in order to inform the pipeline execution model. The original documentation of this method is below. See also: ProcessObject::GenerateOutputInformaton() Reimplemented from itk::ProcessObject.

template<class TInputImage, class TOutputImage> virtual const OutputPixelType& itk::VectorExpandImageFilter< TInputImage, TOutputImage >::GetEdgePaddingValue (   )  [inline, virtual]

Get the edge padding value. Definition at line 150 of file itkVectorExpandImageFilter.h.

template<class TInputImage, class TOutputImage> const ExpandFactorsType* itk::VectorExpandImageFilter< TInputImage, TOutputImage >::GetExpandFactors (   )  const [inline]

Get the expand factors. Definition at line 143 of file itkVectorExpandImageFilter.h.

template<class TInputImage, class TOutputImage> virtual InterpolatorType* itk::VectorExpandImageFilter< TInputImage, TOutputImage >::GetInterpolator (   )  [virtual]

Get a pointer to the interpolator function.

template<class TInputImage, class TOutputImage> virtual const char* itk::VectorExpandImageFilter< TInputImage, TOutputImage >::GetNameOfClass (   )  const [virtual]

Run-time type information (and related methods). Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

template<class TInputImage, class TOutputImage> itk::VectorExpandImageFilter< TInputImage, TOutputImage >::itkStaticConstMacro (  ImageDimension  , unsigned  int, TInputImage::ImageDimension  )

ImageDimension enumeration

template<class TInputImage, class TOutputImage> Pointer itk::VectorExpandImageFilter< TInputImage, TOutputImage >::New (   )  [static]

Method for creation through the object factory. Reimplemented from itk::Object.

template<class TInputImage, class TOutputImage> void itk::VectorExpandImageFilter< TInputImage, TOutputImage >::PrintSelf (  std::ostream &  os, Indent  indent )  const [protected, virtual]

Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

template<class TInputImage, class TOutputImage> virtual void itk::VectorExpandImageFilter< TInputImage, TOutputImage >::SetEdgePaddingValue (  const OutputPixelType &  value  )  [virtual]

Set the edge padding value. The default is a vector of zero.

template<class TInputImage, class TOutputImage> virtual void itk::VectorExpandImageFilter< TInputImage, TOutputImage >::SetExpandFactors (  const unsigned int  factors[]  )  [virtual]

Set the expand factors. Values are clamped to a minimum value of 1. Default is 1 for all dimensions.

template<class TInputImage, class TOutputImage> virtual void itk::VectorExpandImageFilter< TInputImage, TOutputImage >::SetExpandFactors (  const ExpandFactorsType  factor  )  [virtual]

Set the expand factors. Values are clamped to a minimum value of 1. Default is 1 for all dimensions.

template<class TInputImage, class TOutputImage> virtual void itk::VectorExpandImageFilter< TInputImage, TOutputImage >::SetExpandFactors (  const ExpandFactorsType  factors[]  )  [virtual]

Set the expand factors. Values are clamped to a minimum value of 1. Default is 1 for all dimensions.

template<class TInputImage, class TOutputImage> virtual void itk::VectorExpandImageFilter< TInputImage, TOutputImage >::SetInterpolator (  InterpolatorType *  _arg  )  [virtual]

Set the interpolator function.

template<class TInputImage, class TOutputImage> virtual void itk::VectorExpandImageFilter< TInputImage, TOutputImage >::ThreadedGenerateData (  const OutputImageRegionType &  outputRegionForThread, int  threadId )  [protected, virtual]

VectorExpandImageFilter is implemented as a multithreaded filter. Therefore, this implementation provides a ThreadedGenerateData() routine which is called for each processing thread. The output image data is allocated automatically by the superclass prior to calling ThreadedGenerateData(). ThreadedGenerateData can only write to the portion of the output image specified by the parameter "outputRegionForThread" See also: ImageToImageFilter::ThreadedGenerateData(), ImageToImageFilter::GenerateData() Reimplemented from itk::ImageSource< TOutputImage >.

---

The documentation for this class was generated from the following file:

• itkVectorExpandImageFilter.h

---
