itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform > Class Template Reference
[Mesh Filters]

#include <itkTransformMeshFilter.h>

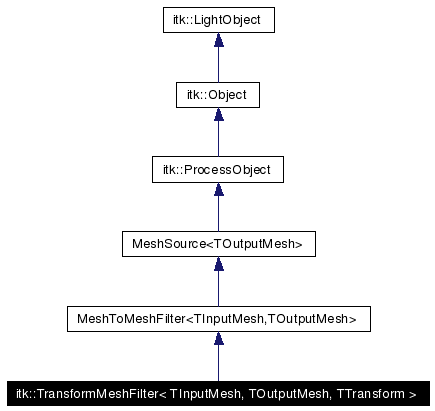

Inheritance diagram for itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >:

Inheritance graph
[legend]

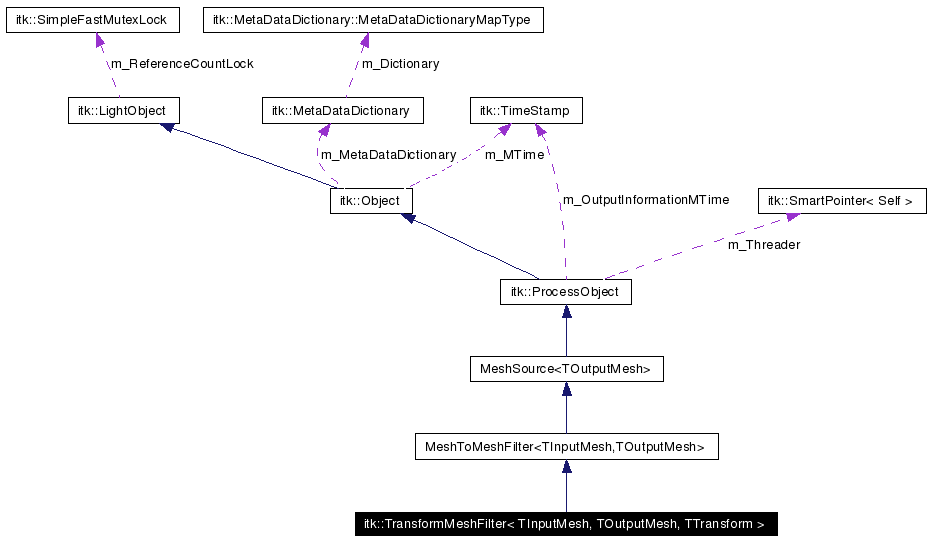

Collaboration diagram for itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef TransformMeshFilter Self
typedef MeshToMeshFilter<
TInputMesh, TOutputMesh >
Superclass
typedef SmartPointer< SelfPointer
typedef SmartPointer< const
Self
ConstPointer
typedef TInputMesh InputMeshType
typedef TOutputMesh OutputMeshType
typedef InputMeshType::Pointer InputMeshPointer
typedef OutputMeshType::Pointer OutputMeshPointer
typedef TInputMesh::CoordRepType CoordRepType
typedef TTransform TransformType

Public Member Functions

virtual const char * GetNameOfClass () const
virtual void SetTransform (TransformType *_arg)
virtual TransformTypeGetTransform ()

Static Public Member Functions

Pointer New ()

Protected Member Functions

 TransformMeshFilter ()
 ~TransformMeshFilter ()
void PrintSelf (std::ostream &os, Indent indent) const
virtual void GenerateData (void)

Protected Attributes

TransformType::Pointer m_Transform

Detailed Description

template<class TInputMesh, class TOutputMesh, class TTransform>
class itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >

TransformMeshFilter applies a transform to all the points of a mesh.

The additional content of the mesh is passed untouched. Including the connectivity and the additional information contained on cells and points.

Meshes that have added information like normal vector on the points, will have to take care of transforming this data by other means.

Definition at line 41 of file itkTransformMeshFilter.h.


Member Typedef Documentation

template<class TInputMesh, class TOutputMesh, class TTransform>
typedef SmartPointer<const Self> itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::ConstPointer


Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

Definition at line 49 of file itkTransformMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TTransform>
typedef TInputMesh::CoordRepType itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::CoordRepType


Type for representing coordinates.

Definition at line 57 of file itkTransformMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TTransform>
typedef InputMeshType::Pointer itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::InputMeshPointer


Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

Definition at line 53 of file itkTransformMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TTransform>
typedef TInputMesh itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::InputMeshType


Some convenient typedefs.

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

Definition at line 51 of file itkTransformMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TTransform>
typedef OutputMeshType::Pointer itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::OutputMeshPointer


Reimplemented from itk::MeshSource< TOutputMesh >.

Definition at line 54 of file itkTransformMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TTransform>
typedef TOutputMesh itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::OutputMeshType


Reimplemented from itk::MeshSource< TOutputMesh >.

Definition at line 52 of file itkTransformMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TTransform>
typedef SmartPointer<Self> itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::Pointer


Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

Definition at line 48 of file itkTransformMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TTransform>
typedef TransformMeshFilter itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::Self


Standard class typedefs.

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

Definition at line 46 of file itkTransformMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TTransform>
typedef MeshToMeshFilter<TInputMesh,TOutputMesh> itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::Superclass


Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

Definition at line 47 of file itkTransformMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TTransform>
typedef TTransform itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::TransformType


Type of the transform.

Definition at line 60 of file itkTransformMeshFilter.h.


Constructor & Destructor Documentation

template<class TInputMesh, class TOutputMesh, class TTransform>
itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::TransformMeshFilter  )  [protected]


template<class TInputMesh, class TOutputMesh, class TTransform>
itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::~TransformMeshFilter  )  [inline, protected]


Definition at line 76 of file itkTransformMeshFilter.h.


Member Function Documentation

template<class TInputMesh, class TOutputMesh, class TTransform>
virtual void itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::GenerateData void   )  [protected, virtual]


Generate Requested Data

Reimplemented from itk::ProcessObject.

template<class TInputMesh, class TOutputMesh, class TTransform>
virtual const char* itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::GetNameOfClass  )  const [virtual]


Run-time type information (and related methods).

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

template<class TInputMesh, class TOutputMesh, class TTransform>
virtual TransformType* itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::GetTransform  )  [virtual]


Get transform.

template<class TInputMesh, class TOutputMesh, class TTransform>
Pointer itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::New  )  [static]


Method for creation through the object factory.

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

template<class TInputMesh, class TOutputMesh, class TTransform>
void itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::PrintSelf std::ostream &  os,
Indent  indent
const [protected, virtual]


Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from itk::MeshSource< TOutputMesh >.

template<class TInputMesh, class TOutputMesh, class TTransform>
virtual void itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::SetTransform TransformType _arg  )  [virtual]


Set transform.


Member Data Documentation

template<class TInputMesh, class TOutputMesh, class TTransform>
TransformType::Pointer itk::TransformMeshFilter< TInputMesh, TOutputMesh, TTransform >::m_Transform [protected]


Transform to apply to all the mesh points.

Definition at line 83 of file itkTransformMeshFilter.h.


The documentation for this class was generated from the following file:
