itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement > Class Template Reference

projects measurement vectors on to an axis to generate an 1D histogram. More...

#include <itkSampleToHistogramProjectionFilter.h>

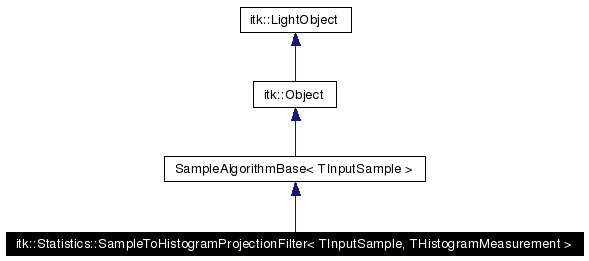

Inheritance diagram for itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >:

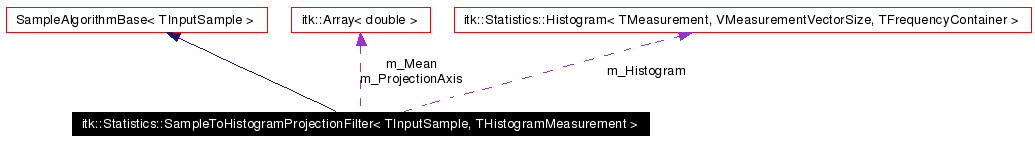

[legend]Collaboration diagram for itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >:

[legend]List of all members.

Public Types
typedef SampleToHistogramProjectionFilter	Self
typedef SampleAlgorithmBase< TInputSample >	Superclass
typedef SmartPointer< Self >	Pointer
typedef const SmartPointer< Self >	ConstPointer
typedef TInputSample::MeasurementVectorType	MeasurementVectorType
typedef TInputSample::MeasurementType	MeasurementType
typedef TInputSample::FrequencyType	FrequencyType
typedef TInputSample::InstanceIdentifier	InstanceIdentifier
typedef Superclass::InputSampleType	InputSampleType
typedef Superclass::MeasurementVectorSizeType	MeasurementVectorSizeType
typedef Array< double >	ArrayType
typedef Array< double >	MeanType
typedef Histogram< THistogramMeasurement, 1 >	HistogramType
Public Member Functions
virtual const char *	GetNameOfClass () const
virtual void	SetHistogram (HistogramType *histogram)
void	SetMean (MeanType *center)
MeanType *	GetMean ()
void	SetStandardDeviation (double *value)
double *	GetStandardDeviation ()
void	SetProjectionAxis (ArrayType *axis)
ArrayType *	GetProjectionAxis ()
void	SetHistogramBinOverlap (double overlap)
Static Public Member Functions
Pointer	New ()
Protected Member Functions
	SampleToHistogramProjectionFilter ()
virtual	~SampleToHistogramProjectionFilter ()
void	PrintSelf (std::ostream &os, Indent indent) const
float	CalculateOverlap (int binIndex, float dotProduct, float scale, float marginalDistance, bool firstHalf)
void	GenerateData ()

---

Detailed Description

template<class TInputSample, class THistogramMeasurement>
class itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >

projects measurement vectors on to an axis to generate an 1D histogram.

Users should set the input sample, the output histogram, the mean of input sample, the standard deviation of the input sample, and the projection axis respectively using the SetInputSample, the SetHistogram, the SetMean, SetStandardDeviation, and SetProjectionAxis method before run this algorithm.

If the bin overlap value is set by the SetHistogramBinOverlap method and greater than 0.001, the frequency will be weighted based on its closeness of the projected values.

Recent API changes: The static const macro to get the length of a measurement vector, MeasurementVectorSize has been removed to allow the length of a measurement vector to be specified at run time. This is now obtained from the input sample. Typedefs for the Histogram mean MeanType etc have been changed to Array.

Definition at line 54 of file itkSampleToHistogramProjectionFilter.h.

---

Member Typedef Documentation

template<class TInputSample, class THistogramMeasurement> typedef Array< double > itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::ArrayType

1D array typedef Definition at line 82 of file itkSampleToHistogramProjectionFilter.h.

template<class TInputSample, class THistogramMeasurement> typedef const SmartPointer< Self > itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::ConstPointer

Reimplemented from itk::Statistics::SampleAlgorithmBase< TInputSample >. Definition at line 62 of file itkSampleToHistogramProjectionFilter.h.

template<class TInputSample, class THistogramMeasurement> typedef TInputSample::FrequencyType itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::FrequencyType

Definition at line 74 of file itkSampleToHistogramProjectionFilter.h.

template<class TInputSample, class THistogramMeasurement> typedef Histogram< THistogramMeasurement, 1 > itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::HistogramType

Type of the output object Definition at line 88 of file itkSampleToHistogramProjectionFilter.h.

template<class TInputSample, class THistogramMeasurement> typedef Superclass::InputSampleType itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::InputSampleType

typedefs from the superclass Reimplemented from itk::Statistics::SampleAlgorithmBase< TInputSample >. Definition at line 78 of file itkSampleToHistogramProjectionFilter.h.

template<class TInputSample, class THistogramMeasurement> typedef TInputSample::InstanceIdentifier itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::InstanceIdentifier

Definition at line 75 of file itkSampleToHistogramProjectionFilter.h.

template<class TInputSample, class THistogramMeasurement> typedef Array< double > itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::MeanType

The center of the histogram Definition at line 85 of file itkSampleToHistogramProjectionFilter.h.

template<class TInputSample, class THistogramMeasurement> typedef TInputSample::MeasurementType itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::MeasurementType

Definition at line 73 of file itkSampleToHistogramProjectionFilter.h.

template<class TInputSample, class THistogramMeasurement> typedef Superclass::MeasurementVectorSizeType itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::MeasurementVectorSizeType

Length of a measurement vector Reimplemented from itk::Statistics::SampleAlgorithmBase< TInputSample >. Definition at line 79 of file itkSampleToHistogramProjectionFilter.h.

template<class TInputSample, class THistogramMeasurement> typedef TInputSample::MeasurementVectorType itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::MeasurementVectorType

Enums and typedefs from the TInputSample Reimplemented from itk::Statistics::SampleAlgorithmBase< TInputSample >. Definition at line 72 of file itkSampleToHistogramProjectionFilter.h.

template<class TInputSample, class THistogramMeasurement> typedef SmartPointer< Self > itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::Pointer

Reimplemented from itk::Statistics::SampleAlgorithmBase< TInputSample >. Definition at line 61 of file itkSampleToHistogramProjectionFilter.h.

template<class TInputSample, class THistogramMeasurement> typedef SampleToHistogramProjectionFilter itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::Self

Standard class typedefs Reimplemented from itk::Statistics::SampleAlgorithmBase< TInputSample >. Definition at line 59 of file itkSampleToHistogramProjectionFilter.h.

template<class TInputSample, class THistogramMeasurement> typedef SampleAlgorithmBase< TInputSample > itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::Superclass

Reimplemented from itk::Statistics::SampleAlgorithmBase< TInputSample >. Definition at line 60 of file itkSampleToHistogramProjectionFilter.h.

---

Constructor & Destructor Documentation

template<class TInputSample, class THistogramMeasurement> itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::SampleToHistogramProjectionFilter (   )  [protected]

template<class TInputSample, class THistogramMeasurement> virtual itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::~SampleToHistogramProjectionFilter (   )  [inline, protected, virtual]

Definition at line 118 of file itkSampleToHistogramProjectionFilter.h.

---

Member Function Documentation

template<class TInputSample, class THistogramMeasurement> float itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::CalculateOverlap (  int  binIndex, float  dotProduct, float  scale, float  marginalDistance, bool  firstHalf )  [protected]

Calculates overlap weight for the bin based on closeness to the adjacent bins

template<class TInputSample, class THistogramMeasurement> void itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::GenerateData (   )  [protected, virtual]

Runs this algorithm to fill the output histogram Reimplemented from itk::Statistics::SampleAlgorithmBase< TInputSample >.

template<class TInputSample, class THistogramMeasurement> MeanType* itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::GetMean (   )

Gets the mean of the sample

template<class TInputSample, class THistogramMeasurement> virtual const char* itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::GetNameOfClass (   )  const [virtual]

Run-time type information (and related methods) Reimplemented from itk::Statistics::SampleAlgorithmBase< TInputSample >.

template<class TInputSample, class THistogramMeasurement> ArrayType* itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::GetProjectionAxis (   )

Gets the projection axis

template<class TInputSample, class THistogramMeasurement> double* itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::GetStandardDeviation (   )

Gets the standard deviation of the sample

template<class TInputSample, class THistogramMeasurement> Pointer itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::New (   )  [static]

Method for creation through the object factory. Reimplemented from itk::Statistics::SampleAlgorithmBase< TInputSample >.

template<class TInputSample, class THistogramMeasurement> void itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::PrintSelf (  std::ostream &  os, Indent  indent )  const [protected, virtual]

Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from itk::Statistics::SampleAlgorithmBase< TInputSample >.

template<class TInputSample, class THistogramMeasurement> virtual void itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::SetHistogram (  HistogramType *  histogram  )  [virtual]

Sets the output histogram

template<class TInputSample, class THistogramMeasurement> void itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::SetHistogramBinOverlap (  double  overlap  )

Sets the overlap between adjacent bins. If this value is not set, then the overlap calculation will be skipped

template<class TInputSample, class THistogramMeasurement> void itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::SetMean (  MeanType *  center  )

Sets the mean of the sample

template<class TInputSample, class THistogramMeasurement> void itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::SetProjectionAxis (  ArrayType *  axis  )

Sets the projection axis

template<class TInputSample, class THistogramMeasurement> void itk::Statistics::SampleToHistogramProjectionFilter< TInputSample, THistogramMeasurement >::SetStandardDeviation (  double *  value  )

Sets the standard deviation of the sample

---

The documentation for this class was generated from the following file:

• itkSampleToHistogramProjectionFilter.h

---
