itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction > Class Template Reference
[Mesh Filters]

#include <itkInteriorExteriorMeshFilter.h>

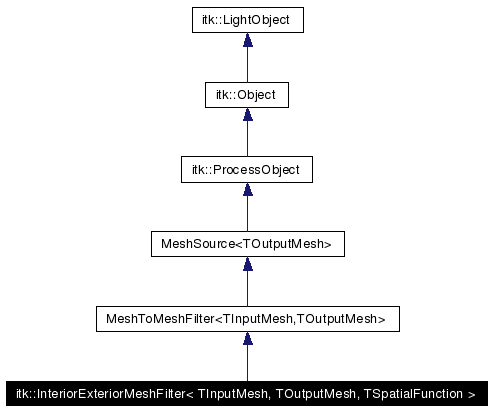

Inheritance diagram for itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >:

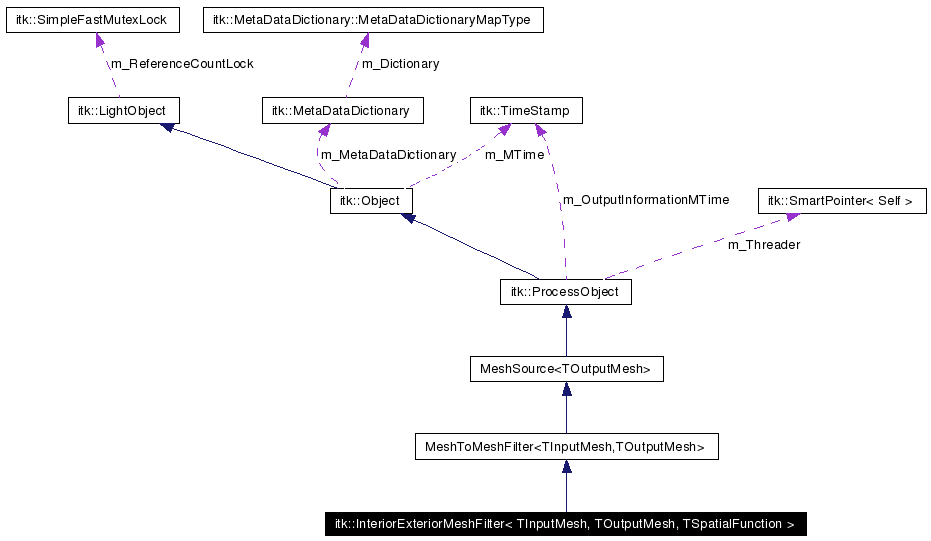

[legend]Collaboration diagram for itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >:

[legend]List of all members.

Public Types
typedef InteriorExteriorMeshFilter	Self
typedef MeshToMeshFilter< TInputMesh, TOutputMesh >	Superclass
typedef SmartPointer< Self >	Pointer
typedef SmartPointer< const Self >	ConstPointer
typedef TInputMesh	InputMeshType
typedef TOutputMesh	OutputMeshType
typedef InputMeshType::Pointer	InputMeshPointer
typedef OutputMeshType::Pointer	OutputMeshPointer
typedef TInputMesh::CoordRepType	CoordRepType
typedef TSpatialFunction	SpatialFunctionType
typedef DataObjectDecorator< SpatialFunctionType >	SpatialFunctionDataObjectType
typedef SpatialFunctionDataObjectType::Pointer	SpatialFunctionDataObjectPointer
Public Member Functions
virtual const char *	GetNameOfClass () const
virtual void	SetSpatialFunction (SpatialFunctionType *_arg)
virtual SpatialFunctionType *	GetSpatialFunction ()
Static Public Member Functions
Pointer	New ()
Protected Member Functions
	InteriorExteriorMeshFilter ()
	~InteriorExteriorMeshFilter ()
void	PrintSelf (std::ostream &os, Indent indent) const
virtual void	GenerateData (void)
Protected Attributes
SpatialFunctionType::Pointer	m_SpatialFunction

---

Detailed Description

template<class TInputMesh, class TOutputMesh, class TSpatialFunction>
class itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >

InteriorExteriorMeshFilter takes an itk::Mesh and extracts from it a Sub-Mesh such that all its points Evaluate > 0 in an itk::SpatialFunction provided by the user.

This filter is templated over the Input Mesh type, the Output Mesh type and the SpatialFunctionType. However the only requirement for the Spatial function is to support SmartPointers and to provide an Execute() method, along with a typedef for OutputType (for the type returned by Execute() ).

The additional content of the mesh is passed untouched. Including the connectivity and the additional information contained on cells and points. However, attention should be paid to the cells because some of their points could not exist in the output mesh, if they did not satisfy the criterion imposed by the spatial function.

Definition at line 47 of file itkInteriorExteriorMeshFilter.h.

---

Member Typedef Documentation

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> typedef SmartPointer<const Self> itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::ConstPointer

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >. Definition at line 55 of file itkInteriorExteriorMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> typedef TInputMesh::CoordRepType itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::CoordRepType

Type for representing coordinates. Definition at line 63 of file itkInteriorExteriorMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> typedef InputMeshType::Pointer itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::InputMeshPointer

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >. Definition at line 59 of file itkInteriorExteriorMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> typedef TInputMesh itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::InputMeshType

Some convenient typedefs. Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >. Definition at line 57 of file itkInteriorExteriorMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> typedef OutputMeshType::Pointer itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::OutputMeshPointer

Reimplemented from itk::MeshSource< TOutputMesh >. Definition at line 60 of file itkInteriorExteriorMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> typedef TOutputMesh itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::OutputMeshType

Reimplemented from itk::MeshSource< TOutputMesh >. Definition at line 58 of file itkInteriorExteriorMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> typedef SmartPointer<Self> itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::Pointer

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >. Definition at line 54 of file itkInteriorExteriorMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> typedef InteriorExteriorMeshFilter itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::Self

Standard class typedefs. Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >. Definition at line 52 of file itkInteriorExteriorMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> typedef SpatialFunctionDataObjectType::Pointer itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::SpatialFunctionDataObjectPointer

Definition at line 83 of file itkInteriorExteriorMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> typedef DataObjectDecorator< SpatialFunctionType > itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::SpatialFunctionDataObjectType

Definition at line 81 of file itkInteriorExteriorMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> typedef TSpatialFunction itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::SpatialFunctionType

Type of the transform. Definition at line 66 of file itkInteriorExteriorMeshFilter.h.

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> typedef MeshToMeshFilter<TInputMesh,TOutputMesh> itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::Superclass

Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >. Definition at line 53 of file itkInteriorExteriorMeshFilter.h.

---

Constructor & Destructor Documentation

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::InteriorExteriorMeshFilter (   )  [protected]

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::~InteriorExteriorMeshFilter (   )  [inline, protected]

Definition at line 88 of file itkInteriorExteriorMeshFilter.h.

---

Member Function Documentation

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> virtual void itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::GenerateData (  void   )  [protected, virtual]

Generate requested data. Reimplemented from itk::ProcessObject.

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> virtual const char* itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::GetNameOfClass (   )  const [virtual]

Run-time type information (and related methods). Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> virtual SpatialFunctionType* itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::GetSpatialFunction (   )  [virtual]

Get the spatial function.

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> Pointer itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::New (   )  [static]

Method for creation through the object factory. Reimplemented from itk::MeshToMeshFilter< TInputMesh, TOutputMesh >.

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> void itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::PrintSelf (  std::ostream &  os, Indent  indent )  const [protected, virtual]

Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from itk::MeshSource< TOutputMesh >.

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> virtual void itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::SetSpatialFunction (  SpatialFunctionType *  _arg  )  [virtual]

Set the spatial function.

---

Member Data Documentation

template<class TInputMesh, class TOutputMesh, class TSpatialFunction> SpatialFunctionType::Pointer itk::InteriorExteriorMeshFilter< TInputMesh, TOutputMesh, TSpatialFunction >::m_SpatialFunction [protected]

Transform applied to all the mesh points. Definition at line 95 of file itkInteriorExteriorMeshFilter.h.

---

The documentation for this class was generated from the following file:

• itkInteriorExteriorMeshFilter.h

---
