itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 > Class Template Reference

Computes the Hausdorff distance between the set of non-zero pixels of two images. More...

#include <itkHausdorffDistanceImageFilter.h>

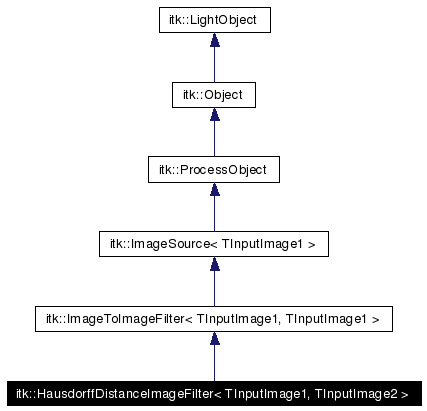

Inheritance diagram for itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >:

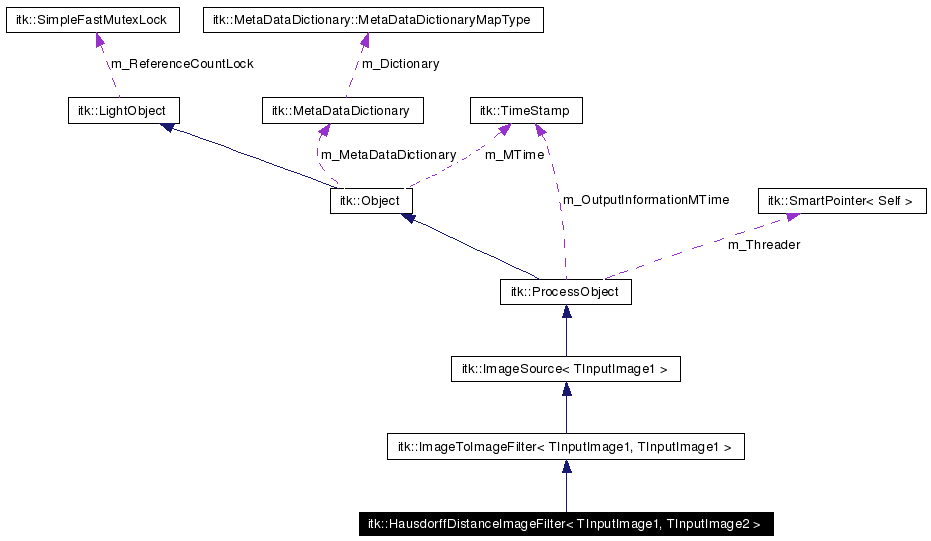

[legend]Collaboration diagram for itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >:

[legend]List of all members.

Public Types
typedef HausdorffDistanceImageFilter	Self
typedef ImageToImageFilter< TInputImage1, TInputImage1 >	Superclass
typedef SmartPointer< Self >	Pointer
typedef SmartPointer< const Self >	ConstPointer
typedef TInputImage1	InputImage1Type
typedef TInputImage2	InputImage2Type
typedef TInputImage1::Pointer	InputImage1Pointer
typedef TInputImage2::Pointer	InputImage2Pointer
typedef TInputImage1::ConstPointer	InputImage1ConstPointer
typedef TInputImage2::ConstPointer	InputImage2ConstPointer
typedef TInputImage1::RegionType	RegionType
typedef TInputImage1::SizeType	SizeType
typedef TInputImage1::IndexType	IndexType
typedef TInputImage1::PixelType	InputImage1PixelType
typedef TInputImage2::PixelType	InputImage2PixelType
typedef NumericTraits< InputImage1PixelType >::RealType	RealType
Public Member Functions
virtual const char *	GetNameOfClass () const
	itkStaticConstMacro (ImageDimension, unsigned int, TInputImage1::ImageDimension)
void	SetInput1 (const InputImage1Type *image)
void	SetInput2 (const InputImage2Type *image)
const InputImage1Type *	GetInput1 (void)
const InputImage2Type *	GetInput2 (void)
virtual RealType	GetHausdorffDistance ()
Static Public Member Functions
Pointer	New ()
Protected Member Functions
	HausdorffDistanceImageFilter ()
	~HausdorffDistanceImageFilter ()
void	PrintSelf (std::ostream &os, Indent indent) const
void	GenerateData ()
void	GenerateInputRequestedRegion ()
void	EnlargeOutputRequestedRegion (DataObject *data)

---

Detailed Description

template<class TInputImage1, class TInputImage2>
class itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >

Computes the Hausdorff distance between the set of non-zero pixels of two images.

HausdorffDistanceImageFilter computes the distance between the set non-zero pixels of two images using the following formula:

where

is the directed Hausdorff distance and and are respectively the set of non-zero pixels in the first and second input images.

In particular, this filter uses the DirectedHausdorffImageFilter inside to compute the two directed distances and then select the largest of the two.

The Hausdorff distance measures the degree of mismatch between two sets and behaves like a metric over the set of all closedm bounded sets - with properties of identity, symmetry and triangle inequality.

This filter requires the largest possible region of the first image and the same corresponding region in the second image. It behaves as filter with two input and one output. Thus it can be inserted in a pipeline with other filters. The filter passes the first input through unmodified.

This filter is templated over the two input image type. It assume both image have the same number of dimensions.

See also:

DirectedHausdorffDistanceImageFilter

Definition at line 60 of file itkHausdorffDistanceImageFilter.h.

---

Member Typedef Documentation

template<class TInputImage1, class TInputImage2> typedef SmartPointer<const Self> itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::ConstPointer

Reimplemented from itk::ImageToImageFilter< TInputImage1, TInputImage1 >. Definition at line 68 of file itkHausdorffDistanceImageFilter.h.

template<class TInputImage1, class TInputImage2> typedef TInputImage1::IndexType itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::IndexType

Definition at line 86 of file itkHausdorffDistanceImageFilter.h.

template<class TInputImage1, class TInputImage2> typedef TInputImage1::ConstPointer itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::InputImage1ConstPointer

Definition at line 81 of file itkHausdorffDistanceImageFilter.h.

template<class TInputImage1, class TInputImage2> typedef TInputImage1::PixelType itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::InputImage1PixelType

Definition at line 88 of file itkHausdorffDistanceImageFilter.h.

template<class TInputImage1, class TInputImage2> typedef TInputImage1::Pointer itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::InputImage1Pointer

Definition at line 79 of file itkHausdorffDistanceImageFilter.h.

template<class TInputImage1, class TInputImage2> typedef TInputImage1 itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::InputImage1Type

Image related typedefs. Definition at line 77 of file itkHausdorffDistanceImageFilter.h. Referenced by itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::GetInput1(), and itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::SetInput1().

template<class TInputImage1, class TInputImage2> typedef TInputImage2::ConstPointer itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::InputImage2ConstPointer

Definition at line 82 of file itkHausdorffDistanceImageFilter.h.

template<class TInputImage1, class TInputImage2> typedef TInputImage2::PixelType itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::InputImage2PixelType

Definition at line 89 of file itkHausdorffDistanceImageFilter.h.

template<class TInputImage1, class TInputImage2> typedef TInputImage2::Pointer itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::InputImage2Pointer

Definition at line 80 of file itkHausdorffDistanceImageFilter.h.

template<class TInputImage1, class TInputImage2> typedef TInputImage2 itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::InputImage2Type

Definition at line 78 of file itkHausdorffDistanceImageFilter.h.

template<class TInputImage1, class TInputImage2> typedef SmartPointer<Self> itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::Pointer

Reimplemented from itk::ImageToImageFilter< TInputImage1, TInputImage1 >. Definition at line 67 of file itkHausdorffDistanceImageFilter.h.

template<class TInputImage1, class TInputImage2> typedef NumericTraits<InputImage1PixelType>::RealType itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::RealType

Type to use form computations. Definition at line 96 of file itkHausdorffDistanceImageFilter.h.

template<class TInputImage1, class TInputImage2> typedef TInputImage1::RegionType itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::RegionType

Definition at line 84 of file itkHausdorffDistanceImageFilter.h.

template<class TInputImage1, class TInputImage2> typedef HausdorffDistanceImageFilter itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::Self

Standard Self typedef Reimplemented from itk::ImageToImageFilter< TInputImage1, TInputImage1 >. Definition at line 65 of file itkHausdorffDistanceImageFilter.h.

template<class TInputImage1, class TInputImage2> typedef TInputImage1::SizeType itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::SizeType

Definition at line 85 of file itkHausdorffDistanceImageFilter.h.

template<class TInputImage1, class TInputImage2> typedef ImageToImageFilter<TInputImage1,TInputImage1> itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::Superclass

Reimplemented from itk::ImageToImageFilter< TInputImage1, TInputImage1 >. Definition at line 66 of file itkHausdorffDistanceImageFilter.h.

---

Constructor & Destructor Documentation

template<class TInputImage1, class TInputImage2> itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::HausdorffDistanceImageFilter (   )  [protected]

template<class TInputImage1, class TInputImage2> itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::~HausdorffDistanceImageFilter (   )  [inline, protected]

Definition at line 117 of file itkHausdorffDistanceImageFilter.h.

---

Member Function Documentation

template<class TInputImage1, class TInputImage2> void itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::EnlargeOutputRequestedRegion (  DataObject *  data  )  [protected, virtual]

Give the process object a chance to indictate that it will produce more output than it was requested to produce. For example, many imaging filters must compute the entire output at once or can only produce output in complete slices. Such filters cannot handle smaller requested regions. These filters must provide an implementation of this method, setting the output requested region to the size they will produce. By default, a process object does not modify the size of the output requested region. Reimplemented from itk::ProcessObject.

template<class TInputImage1, class TInputImage2> void itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::GenerateData (   )  [protected, virtual]

GenerateData. Reimplemented from itk::ImageSource< TInputImage1 >.

template<class TInputImage1, class TInputImage2> void itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::GenerateInputRequestedRegion (   )  [protected, virtual]

What is the input requested region that is required to produce the output requested region? The base assumption for image processing filters is that the input requested region can be set to match the output requested region. If a filter requires more input (for instance a filter that uses neighborhoods needs more input than output to avoid introducing artificial boundary conditions) or less input (for instance a magnify filter) will have to override this method. In doing so, it should call its superclass' implementation as its first step. Note that imaging filters operate differently than the classes to this point in the class hierachy. Up till now, the base assumption has been that the largest possible region will be requested of the input. This implementation of GenerateInputRequestedRegion() only processes the inputs that are a subclass of the ImageBase<InputImageDimension>. If an input is another type of DataObject (including an Image of a different dimension), they are skipped by this method. The subclasses of ImageToImageFilter are responsible for providing an implementation of GenerateInputRequestedRegion() when there are multiple inputs of different types. See also: ProcessObject::GenerateInputRequestedRegion(), ImageSource::GenerateInputRequestedRegion() Reimplemented from itk::ImageToImageFilter< TInputImage1, TInputImage1 >.

template<class TInputImage1, class TInputImage2> virtual RealType itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::GetHausdorffDistance (   )  [virtual]

Return the computed Hausdorff distance.

template<class TInputImage1, class TInputImage2> const InputImage1Type* itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::GetInput1 (  void   )  [inline]

Get the first input. Definition at line 106 of file itkHausdorffDistanceImageFilter.h. References itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::InputImage1Type.

template<class TInputImage1, class TInputImage2> const InputImage2Type* itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::GetInput2 (  void   )

Get the second input.

template<class TInputImage1, class TInputImage2> virtual const char* itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::GetNameOfClass (   )  const [virtual]

Runtime information support. Reimplemented from itk::ImageToImageFilter< TInputImage1, TInputImage1 >.

template<class TInputImage1, class TInputImage2> itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::itkStaticConstMacro (  ImageDimension  , unsigned  int, TInputImage1::ImageDimension  )

Image related typedefs.

template<class TInputImage1, class TInputImage2> Pointer itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::New (   )  [static]

Method for creation through the object factory. Reimplemented from itk::Object.

template<class TInputImage1, class TInputImage2> void itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::PrintSelf (  std::ostream &  os, Indent  indent )  const [protected, virtual]

Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from itk::ImageToImageFilter< TInputImage1, TInputImage1 >.

template<class TInputImage1, class TInputImage2> void itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::SetInput1 (  const InputImage1Type *  image  )  [inline]

Set the first input. Definition at line 99 of file itkHausdorffDistanceImageFilter.h. References itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::InputImage1Type.

template<class TInputImage1, class TInputImage2> void itk::HausdorffDistanceImageFilter< TInputImage1, TInputImage2 >::SetInput2 (  const InputImage2Type *  image  )

Set the second input.

---

The documentation for this class was generated from the following file:

• itkHausdorffDistanceImageFilter.h

---
