itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage > Class Template Reference
[Image FiltersImage Segmentation Filters]

This class computes a diffusion of the gradient vectors for graylevel or binary edge map derive from the image. It enlarges the capture range of the gradient force and make external force derived from the gradient work effectively in the framework of deformable model. More...

#include <itkGradientVectorFlowImageFilter.h>

Inheritance diagram for itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >:

Inheritance graph
[legend]

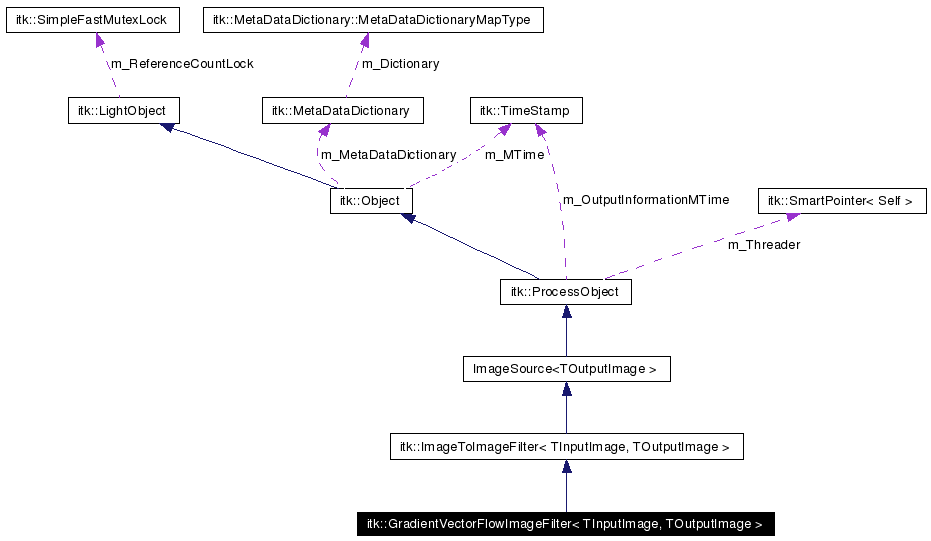

Collaboration diagram for itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef GradientVectorFlowImageFilter Self
typedef ImageToImageFilter<
TInputImage, TOutputImage >
Superclass
typedef SmartPointer< SelfPointer
typedef SmartPointer< const
Self
ConstPointer
typedef TInputImage InputImageType
typedef TOutputImage OutputImageType
typedef TInputImage::IndexType IndexType
typedef TInputImage::SizeType SizeType
typedef TInputImage::PixelType PixelType
typedef OutputImageType::Pointer OutputImagePointer
typedef OutputImageType::RegionType RegionType
typedef ImageRegionIterator<
InputImageType
InputImageIterator
typedef ImageRegionConstIteratorWithIndex<
InputImageType
InputImageConstIterator
typedef ImageRegionIterator<
OutputImageType
OutputImageIterator
typedef itk::Image< double,
itkGetStaticConstMacro(ImageDimension)
InternalImageType )
typedef InternalImageType::Pointer InternalImagePointer
typedef ImageRegionIterator<
InternalImageType
InternalImageIterator
typedef LaplacianImageFilter<
InternalImageType, InternalImageType
LaplacianFilterType
typedef LaplacianFilterType::Pointer LaplacianFilterPointer

Public Member Functions

virtual const char * GetNameOfClass () const
 itkStaticConstMacro (ImageDimension, unsigned int, TInputImage::ImageDimension)
virtual void SetLaplacianFilter (LaplacianFilterPointer _arg)
virtual void SetTimeStep (double _arg)
virtual double GetTimeStep ()
virtual void SetNoiseLevel (double _arg)
virtual double GetNoiseLevel ()
virtual void SetIterationNum (int _arg)
virtual int GetIterationNum ()

Static Public Member Functions

Pointer New ()

Protected Member Functions

 GradientVectorFlowImageFilter ()
 ~GradientVectorFlowImageFilter ()
 GradientVectorFlowImageFilter (const Self &)
void operator= (const Self &)
void PrintSelf (std::ostream &os, Indent indent) const
virtual void GenerateData ()
void InitInterImage ()
void UpdateInterImage ()
void UpdatePixels ()

Detailed Description

template<class TInputImage, class TOutputImage>
class itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >

This class computes a diffusion of the gradient vectors for graylevel or binary edge map derive from the image. It enlarges the capture range of the gradient force and make external force derived from the gradient work effectively in the framework of deformable model.

Definition at line 27 of file itkGradientVectorFlowImageFilter.h.


Member Typedef Documentation

template<class TInputImage, class TOutputImage>
typedef SmartPointer<const Self> itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::ConstPointer


Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

Definition at line 38 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef TInputImage::IndexType itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::IndexType


Definition at line 50 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef ImageRegionConstIteratorWithIndex<InputImageType> itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::InputImageConstIterator


Definition at line 59 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef ImageRegionIterator<InputImageType> itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::InputImageIterator


Image and Image iterator definition.

Definition at line 58 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef TInputImage itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::InputImageType


Some typedefs.

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

Definition at line 47 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef ImageRegionIterator<InternalImageType> itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::InternalImageIterator


Definition at line 68 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef InternalImageType::Pointer itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::InternalImagePointer


Definition at line 67 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef itk::Image<double, itkGetStaticConstMacro(ImageDimension) itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::InternalImageType)


Definition at line 66 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef LaplacianFilterType::Pointer itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::LaplacianFilterPointer


Definition at line 71 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef LaplacianImageFilter<InternalImageType, InternalImageType> itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::LaplacianFilterType


Definition at line 70 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef ImageRegionIterator<OutputImageType> itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::OutputImageIterator


Definition at line 60 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef OutputImageType::Pointer itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::OutputImagePointer


Reimplemented from itk::ImageSource< TOutputImage >.

Definition at line 53 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef TOutputImage itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::OutputImageType


Some convenient typedefs.

Reimplemented from itk::ImageSource< TOutputImage >.

Definition at line 48 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef TInputImage::PixelType itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::PixelType


Definition at line 52 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef SmartPointer<Self> itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::Pointer


Smart pointer typedef support

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

Definition at line 37 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef OutputImageType::RegionType itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::RegionType


Definition at line 54 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef GradientVectorFlowImageFilter itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::Self


Standard "Self" typedef.

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

Definition at line 31 of file itkGradientVectorFlowImageFilter.h.

Referenced by itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::GradientVectorFlowImageFilter(), and itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::operator=().

template<class TInputImage, class TOutputImage>
typedef TInputImage::SizeType itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::SizeType


Definition at line 51 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
typedef ImageToImageFilter<TInputImage, TOutputImage> itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::Superclass


Standard "Superclass" typedef.

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

Definition at line 34 of file itkGradientVectorFlowImageFilter.h.


Constructor & Destructor Documentation

template<class TInputImage, class TOutputImage>
itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::GradientVectorFlowImageFilter  )  [protected]


template<class TInputImage, class TOutputImage>
itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::~GradientVectorFlowImageFilter  )  [inline, protected]


Definition at line 88 of file itkGradientVectorFlowImageFilter.h.

template<class TInputImage, class TOutputImage>
itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::GradientVectorFlowImageFilter const Self  )  [inline, protected]


Definition at line 89 of file itkGradientVectorFlowImageFilter.h.

References itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::Self.


Member Function Documentation

template<class TInputImage, class TOutputImage>
virtual void itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::GenerateData  )  [protected, virtual]


A version of GenerateData() specific for image processing filters. This implementation will split the processing across multiple threads. The buffer is allocated by this method. Then the BeforeThreadedGenerateData() method is called (if provided). Then, a series of threads are spawned each calling ThreadedGenerateData(). After all the threads have completed processing, the AfterThreadedGenerateData() method is called (if provided). If an image processing filter cannot be threaded, the filter should provide an implementation of GenerateData(). That implementation is responsible for allocating the output buffer. If a filter an be threaded, it should NOT provide a GenerateData() method but should provide a ThreadedGenerateData() instead.

See also:
ThreadedGenerateData()

Reimplemented from itk::ImageSource< TOutputImage >.

template<class TInputImage, class TOutputImage>
virtual int itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::GetIterationNum  )  [virtual]


template<class TInputImage, class TOutputImage>
virtual const char* itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::GetNameOfClass  )  const [virtual]


Run-time type information (and related methods).

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

template<class TInputImage, class TOutputImage>
virtual double itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::GetNoiseLevel  )  [virtual]


template<class TInputImage, class TOutputImage>
virtual double itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::GetTimeStep  )  [virtual]


template<class TInputImage, class TOutputImage>
void itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::InitInterImage  )  [protected]


template<class TInputImage, class TOutputImage>
itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::itkStaticConstMacro ImageDimension  ,
unsigned  int,
TInputImage::ImageDimension


Image dimension.

template<class TInputImage, class TOutputImage>
Pointer itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::New  )  [static]


Method of creation through the object factory.

Reimplemented from itk::Object.

template<class TInputImage, class TOutputImage>
void itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::operator= const Self  )  [inline, protected]


Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

Definition at line 90 of file itkGradientVectorFlowImageFilter.h.

References itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::Self.

template<class TInputImage, class TOutputImage>
void itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::PrintSelf std::ostream &  os,
Indent  indent
const [protected, virtual]


Methods invoked by Print() to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from itk::ImageToImageFilter< TInputImage, TOutputImage >.

template<class TInputImage, class TOutputImage>
virtual void itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::SetIterationNum int  _arg  )  [virtual]


template<class TInputImage, class TOutputImage>
virtual void itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::SetLaplacianFilter LaplacianFilterPointer  _arg  )  [virtual]


Routines.

template<class TInputImage, class TOutputImage>
virtual void itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::SetNoiseLevel double  _arg  )  [virtual]


template<class TInputImage, class TOutputImage>
virtual void itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::SetTimeStep double  _arg  )  [virtual]


template<class TInputImage, class TOutputImage>
void itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::UpdateInterImage  )  [protected]


template<class TInputImage, class TOutputImage>
void itk::GradientVectorFlowImageFilter< TInputImage, TOutputImage >::UpdatePixels  )  [protected]



The documentation for this class was generated from the following file:
